4-200 Service Manual

7462

Go Back

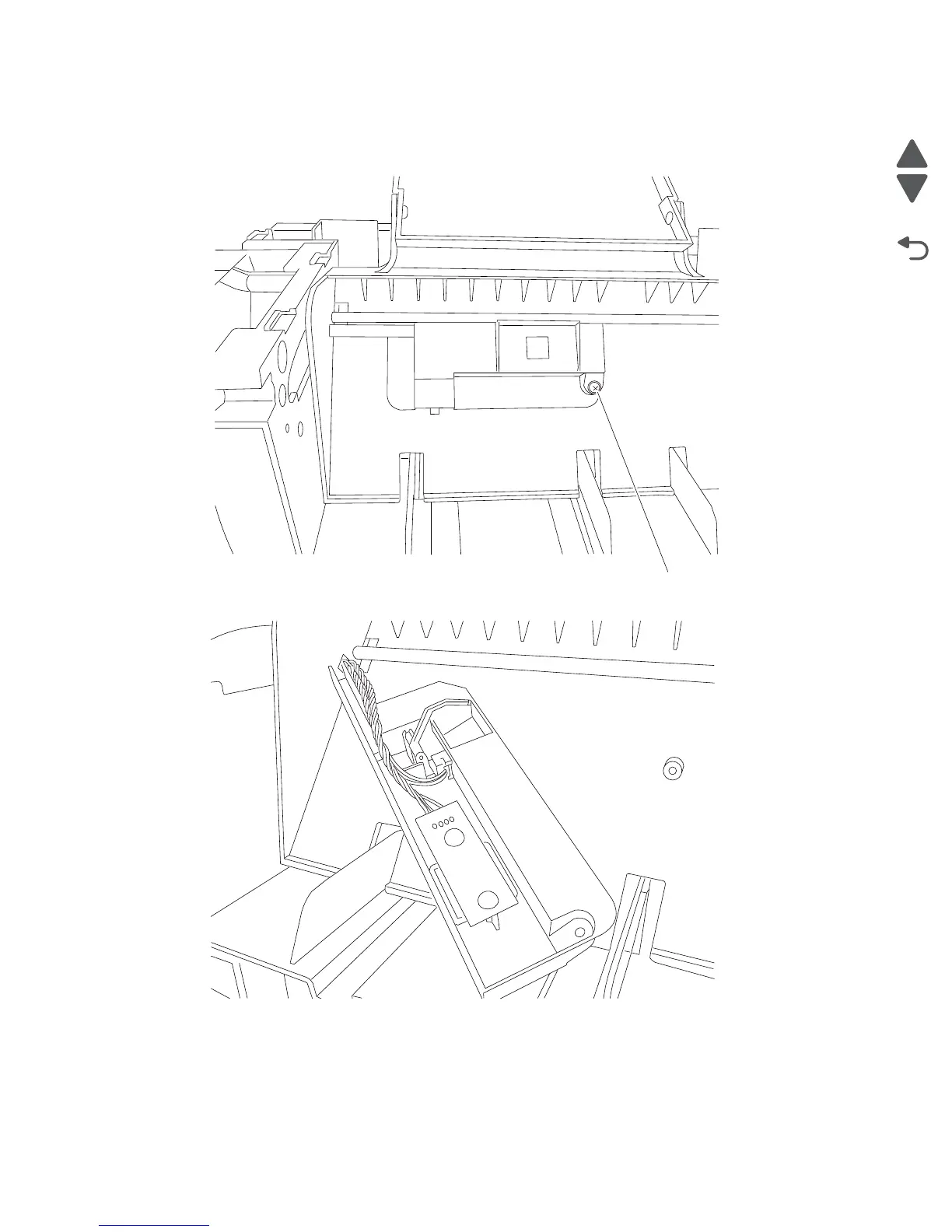

MFP stapler assembly LED sensor cover removal

1. Remove the screw (A) securing the LED sensor cover to the underside of the output bin.

2. Remove the standard output bin LED. See “MFP stapler assembly standard output bin LED and LED

clear lens removal” on page 4-203.

3. Remove the sensor (finisher media bin present). See “MFP stapler assembly sensor (finisher media bin

present) removal” on page 4-202.
