Sensor (standard bin exit) actuator removal

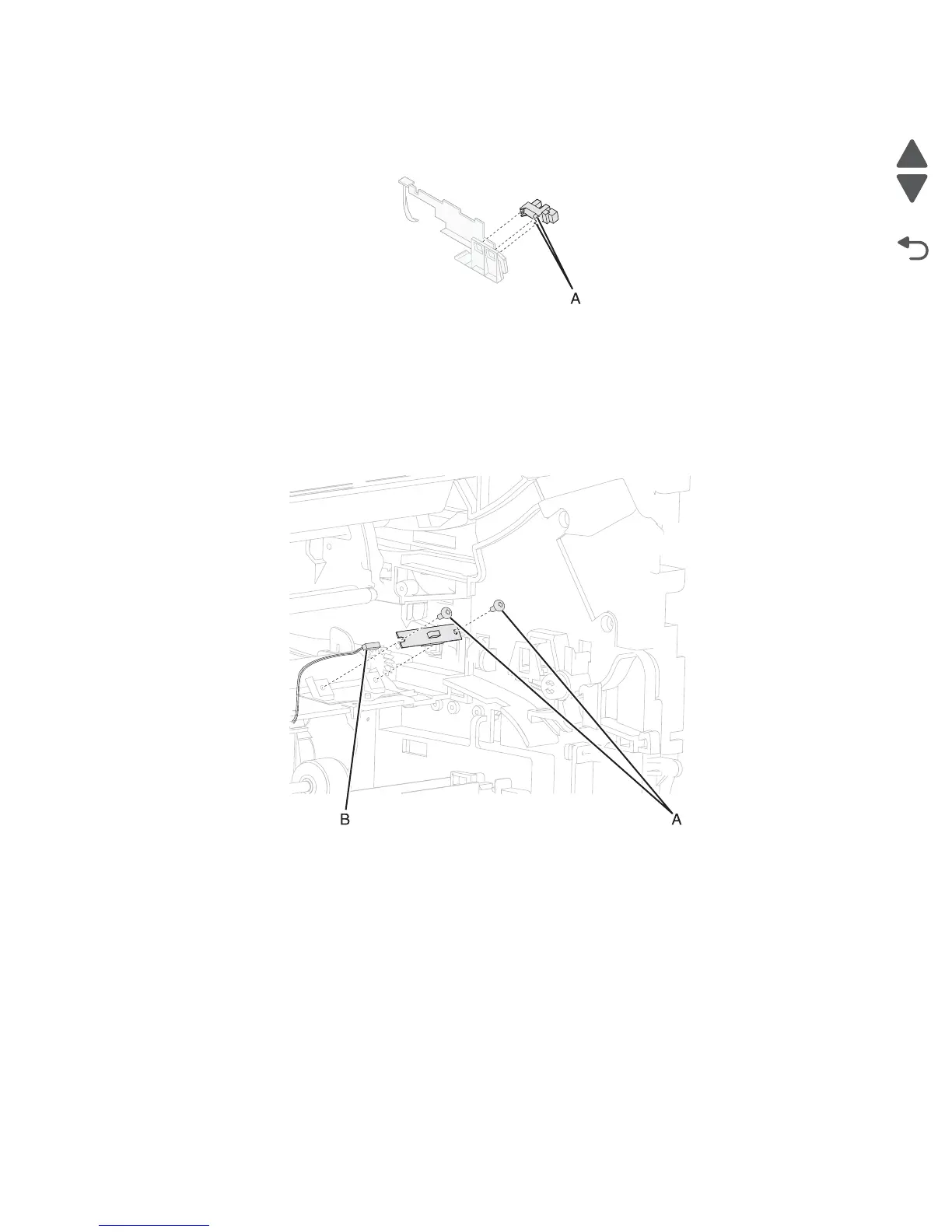

1. Release the hooks (A) securing the sensor (standard bin exit) actuator to the assembly.
2. Remove the sensor (standard bin exit) actuator.
Sensor (toner density) removal
1. Remove the sensor shield assembly. See “Sensor shield assembly removal” on page 4-42.
2. Remove the two screws (A) securing the sensor (toner density) to the machine.
3. Remove the sensor (toner density).
4. Disconnect the connection (B) to the sensor (toner density).
