4-130 Service Manual

7462

Go Back

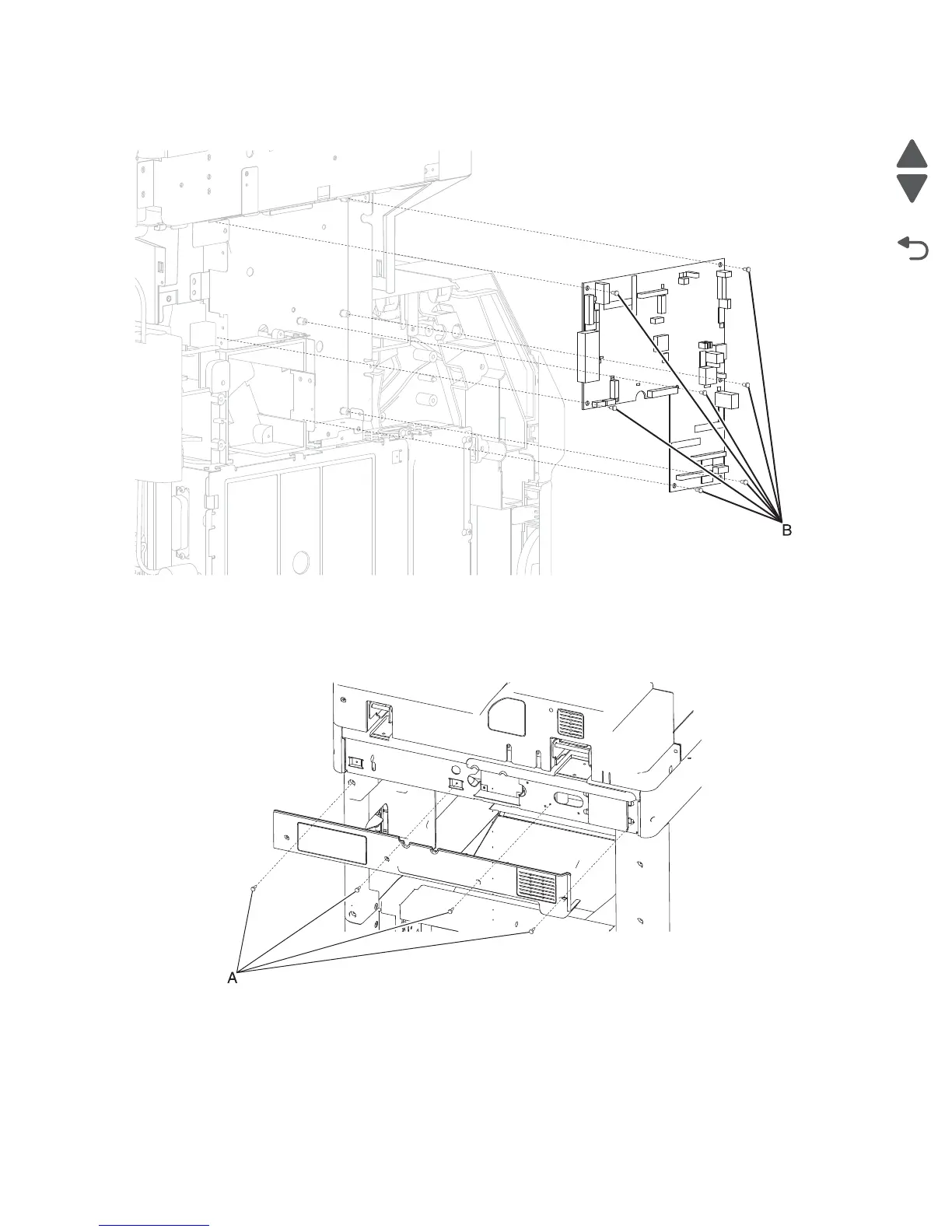

4. Disconnect all the harnesses and ribbon cables.

5. Remove the seven screws (B) securing the card to the cage.

6. Remove the scanner controller card.

Scanner cover, rear removal

1. Remove the four screws (A) securing the scanner cover, rear to the scanner.

2. Pull out from the bottom, and remove the scanner cover, rear.
