4-26 Service Manual
7462

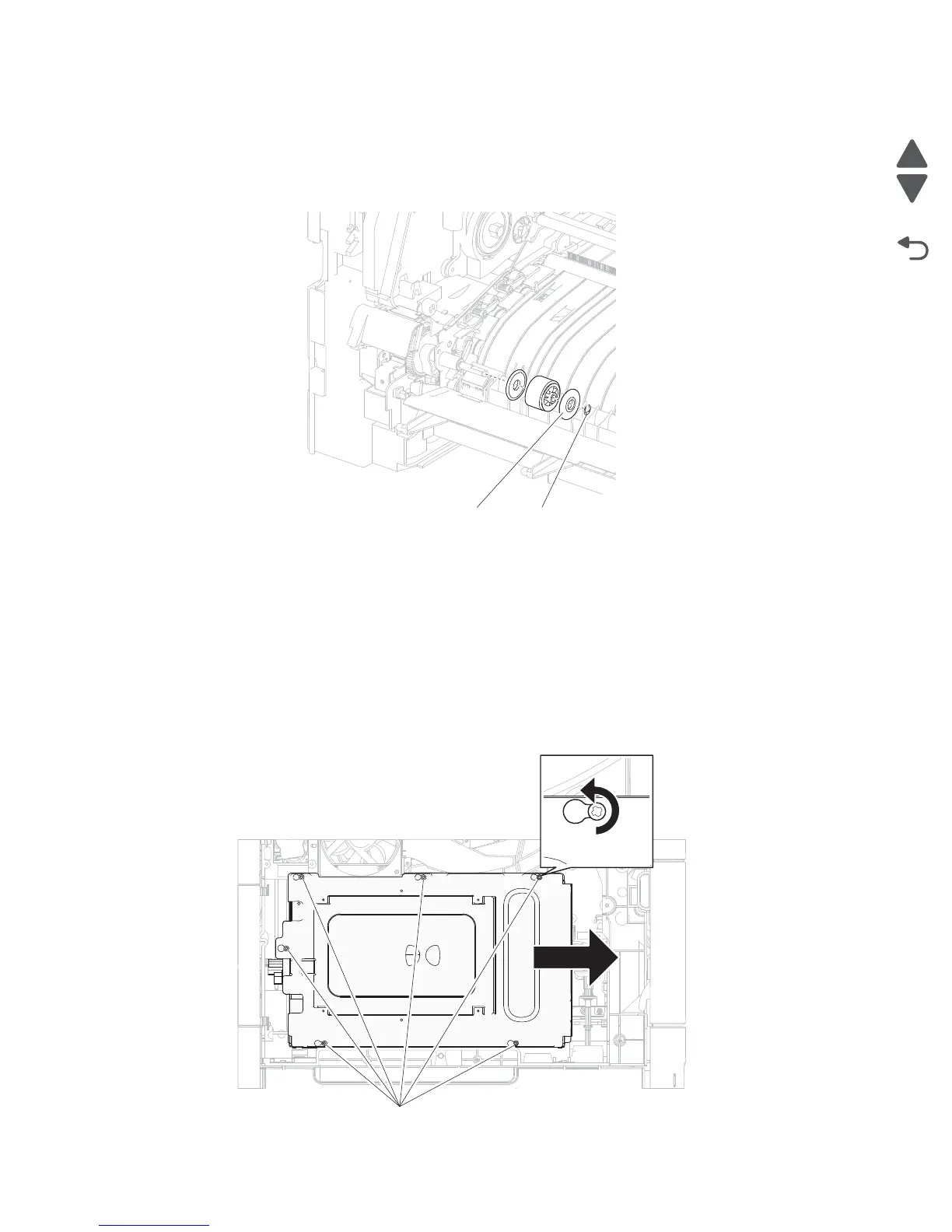

MPF pick roll assembly removal
1. Remove the media turn guide. See “Media turn guide removal” on page 4-12.
2. Remove the E-clip (A) securing the MPF print roll assembly to the machine.
3. Remove the plastic washer (B).
4. Remove the MPF pick roll assembly.
Replacement Warning: When replacing the MPF pick roll assembly, do not touch the rubber surface.
MPF pick solenoid assembly removal
Note: The MPF lift plate assembly can be detached and allowed to hang by the harness. The connection does
not need to be disconnected.
1. Remove the MPF lift plate assembly. See “MPF lift plate assembly removal” on page 4-25.
2. Remove the side cover, left. See“Side cover, left removal (models X651, X652, X654, and X656)” on
page 4-121 or “Side cover, left removal (model X658)” on page 4-120.
3. Remove the six screws (A) securing the metal cover to the machine.
To Next Page
