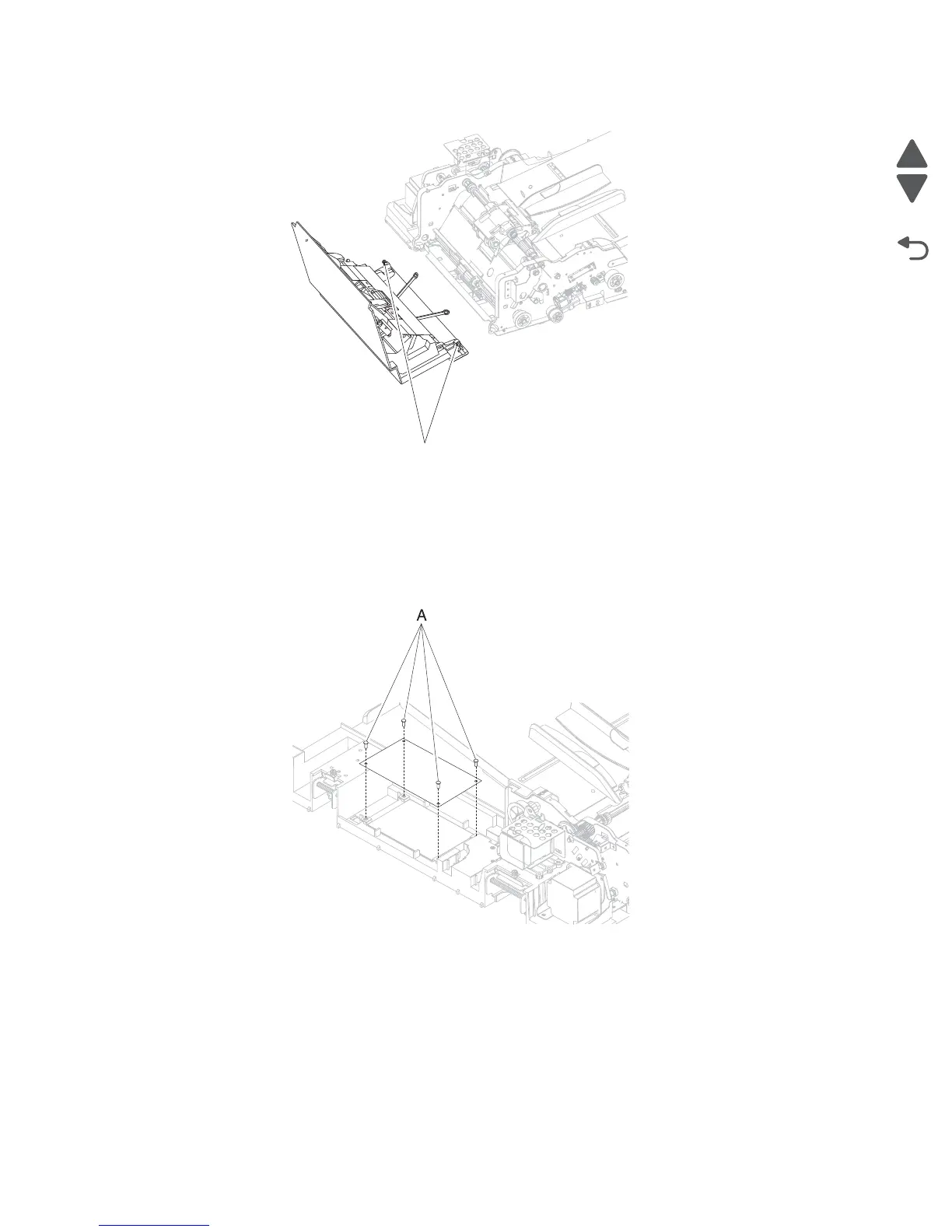

7. Pry out the front tabs (D).
8. Remove the ADF top door assembly.
ADF controller card removal
1. Remove the ADF cover, rear. See “ADF cover, rear removal” on page 4-60.
2. Disconnect all cables attached to the controller card.
3. Remove the four screws (A) securing the ADF controller card.
4. Remove the ADF controller card.
ADF platen cushion removal
1. Lift the ADF unit assembly.
2. Unfasten the velcro.
3. Remove the ADF platen cushion.
