Repair information 4-63
7462

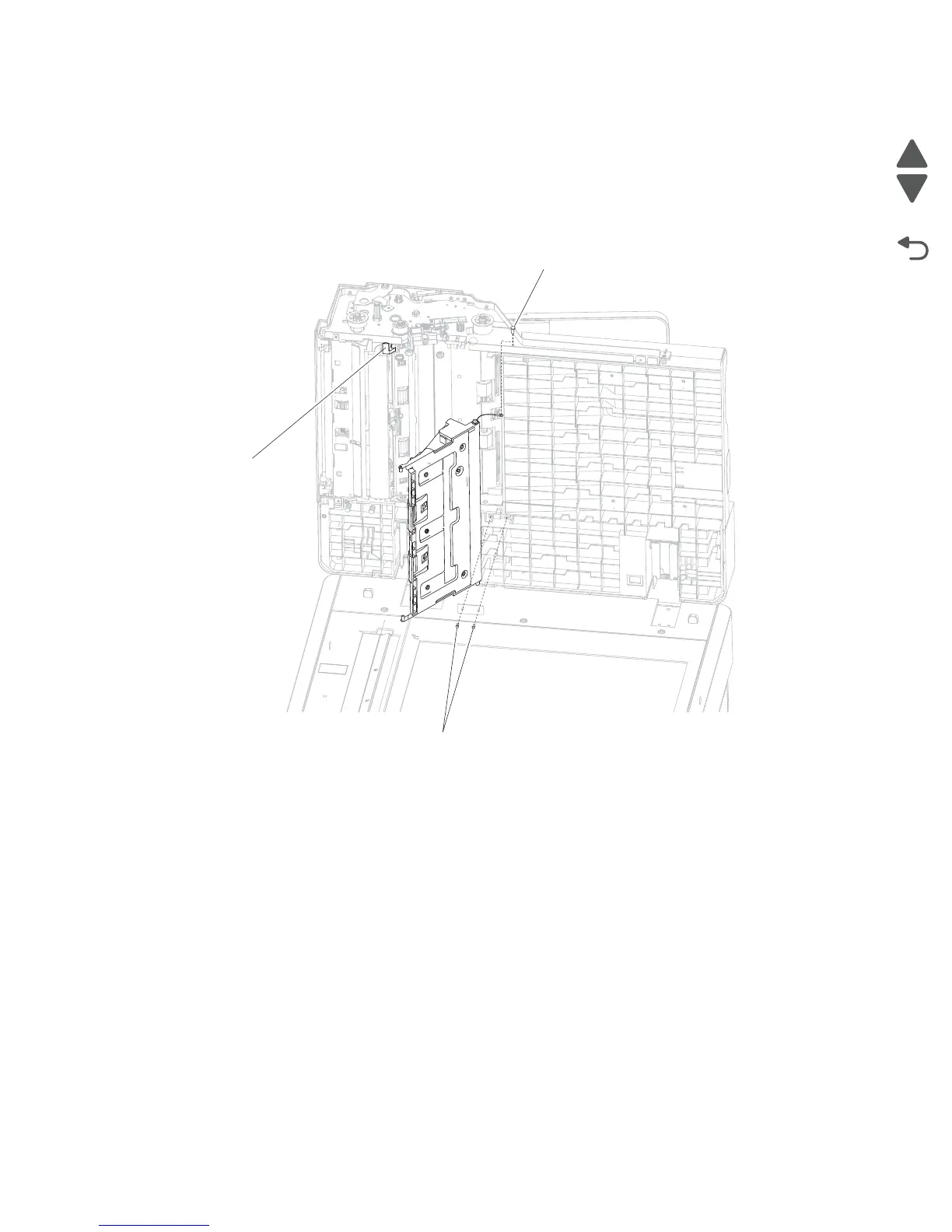

ADF lower door assembly removal
1. Remove the ADF platen cushion. See “ADF platen cushion removal” on page 4-62.
2. Open the ADF bottom door by pressing the green tab (A) on the underside of the front of the ADF unit
assembly.
3. Remove the screw (B) securing the ground wire to the ADF unit assembly.
4. Remove the two screws (C) securing the bottom door hinge plate.
5. Remove the hinge plate and pull the ADF lower door assembly and remove.
