4-64 Service Manual

7462

Go Back

ADF duplex CCD scan glass assembly removal (X654, X656, and X658)

1. Remove the ADF platen cushion. See “ADF platen cushion removal” on page 4-62.

2. Open the ADF lower door assembly.

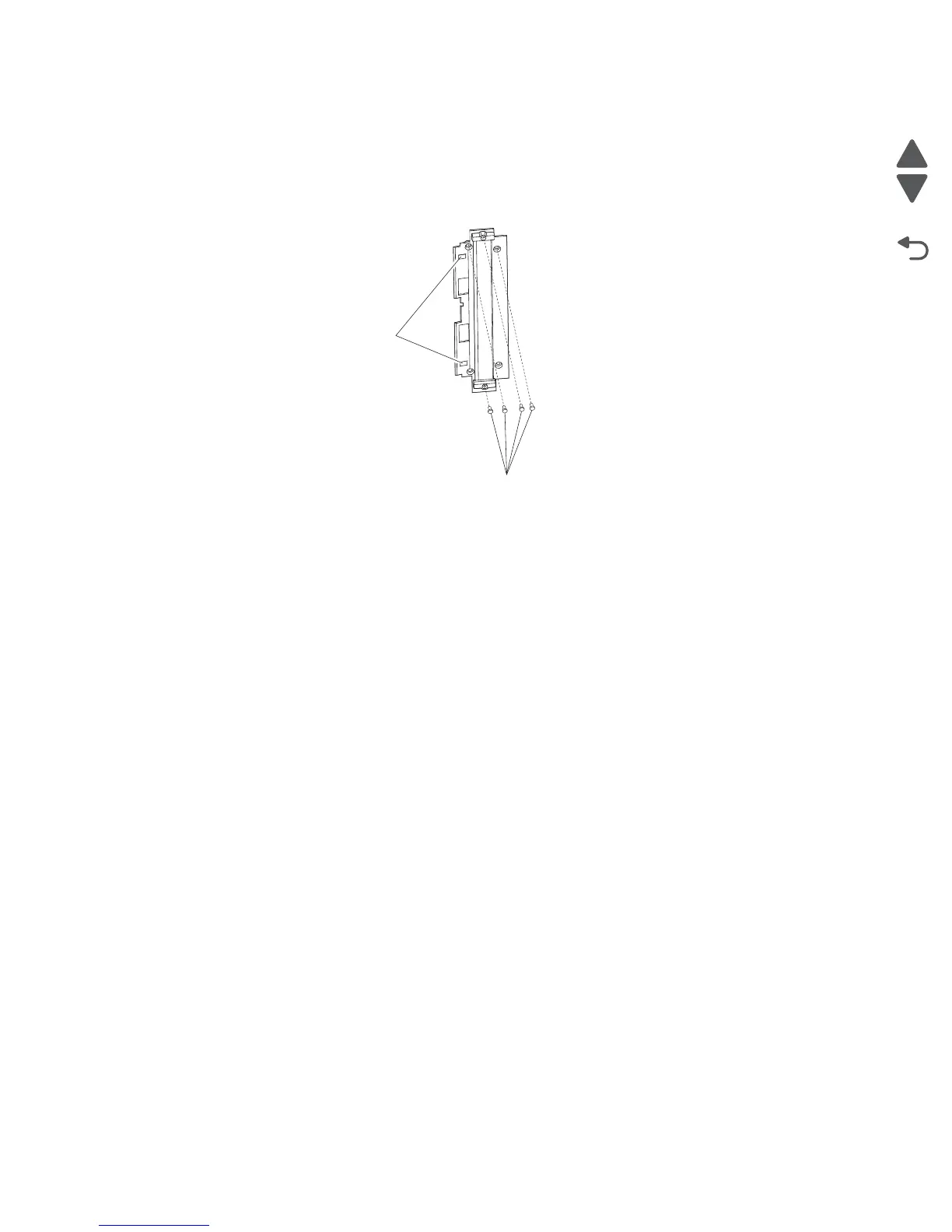

3. Remove four screws (A) from the ADF duplex CCD scan glass assembly.

4. Pull up and release the two snaps (B) securing the ADF duplex LED scan glass assembly.

5. Remove the ADF duplex CCD scan glass assembly.
