Repair information 4-21
7462
Alignment assembly removal
WARNING: When replacing the alignment assembly, ensure that the media skew is properly adjusted using
the adjuster screw (C), or jamming will occur. See “Alignment assembly adjustment” on page 4-3.
1. Remove the side cover, left. See “Side cover, left removal (models X651, X652, X654, and X656)” on
page 4-121 or “Side cover, left removal (model X658)” on page 4-120.

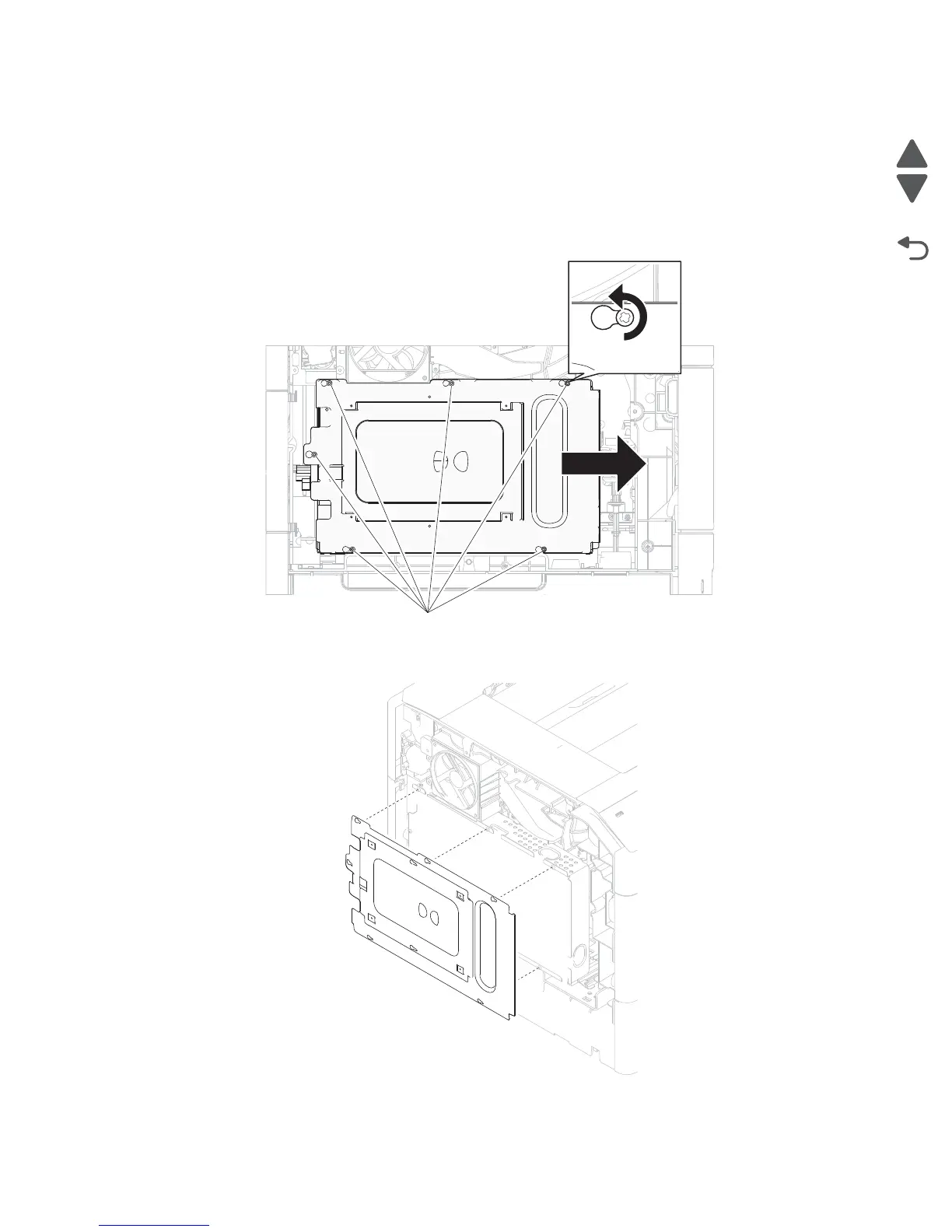

2. Remove the six screws (A) securing the metal cover to the machine.
3. Remove the metal cover.
4. Remove the inner deflector. See “Inner deflector removal” on page 4-18.
5. Remove the MPF pick solenoid assembly. See “MPF pick solenoid assembly removal” on page 4-26.
