4-240 Service Manual

7462

Go Back

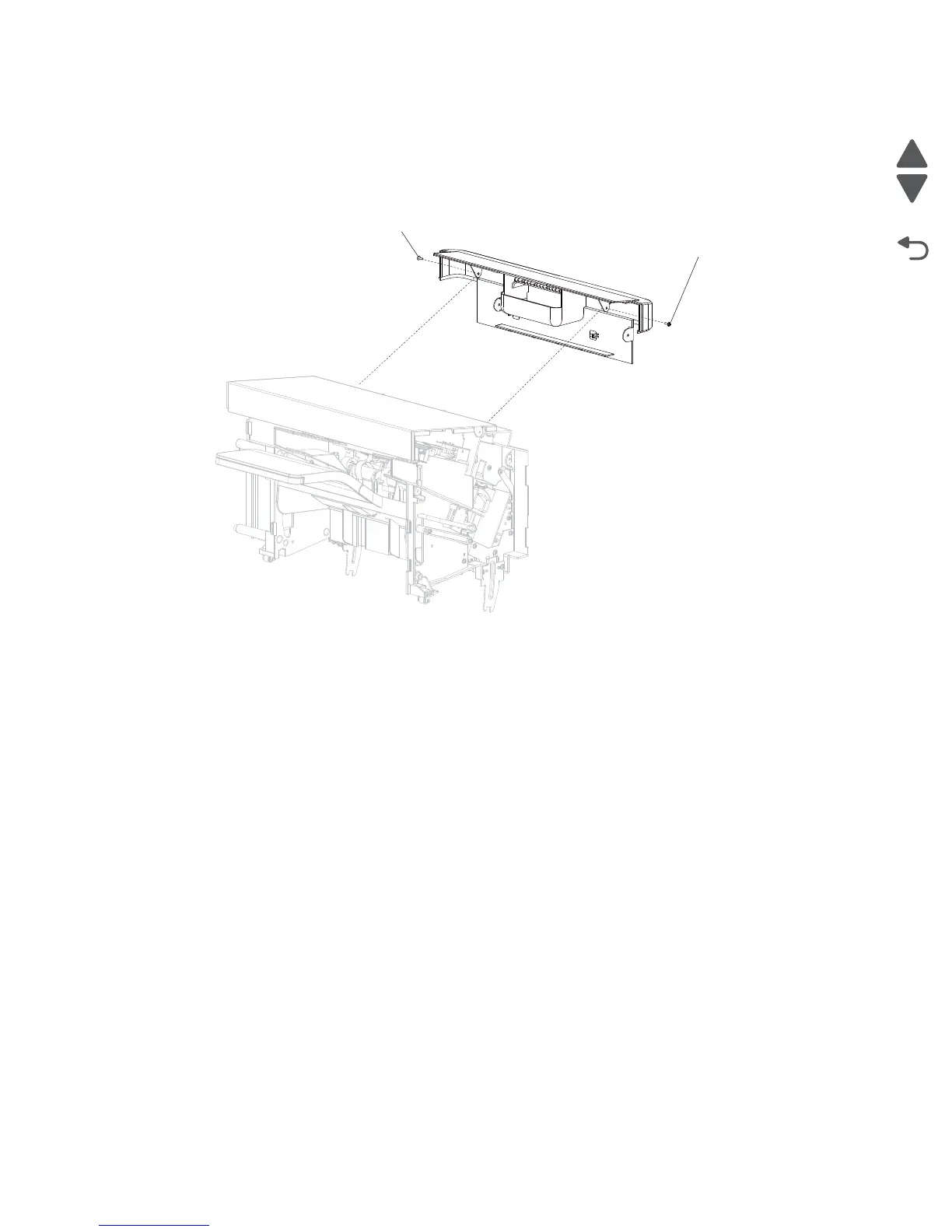

Offset stacker handle cover removal

1. Remove the left and right cover. See “Offset stacker left cover removal” on page 4-238 and “Offset

stacker right cover removal” on page 4-237.

2. Remove the two screws (A) on each side of the offset stacker.

3. Lift up and to the rear to remove the cover.
