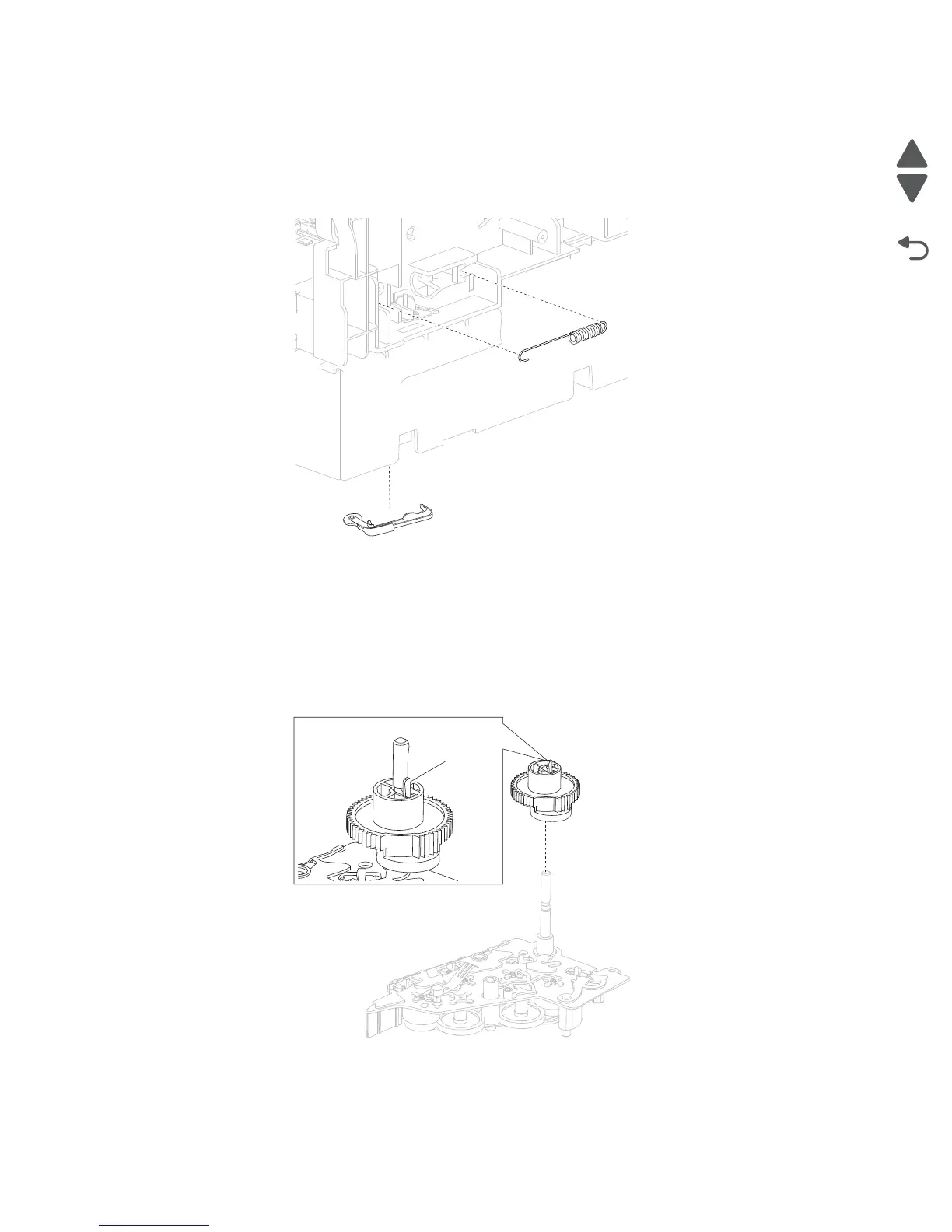

Tray roller catch assembly removal
1. Remove the media tray.
2. Remove the HVPS card assembly. See “HVPS card assembly removal” on page 4-17.
3. Release the spring from the machine.
Note: The tray roller catch assembly should be removed from the media tray cabinet.
4. Remove the tray roller catch assembly from the machine.
MPF cam gear removal
1. Remove the alignment assembly. See “Alignment assembly removal” on page 4-21.
2. Release the hook (A) securing the gear to the unit.
3. Remove the MPF cam gear.
