High capacity input tray (HCIT) tray lift drive motor assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, right. See “High capacity input tray (HCIT) cover, right removal” on
page 4-157.
2. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-159.
3. Disconnect the HCIT tray lift drive motor cable connector from the HCIT controller card assembly.
Note: Remove the cable from the restraint, and observe the routing for reinstallation.

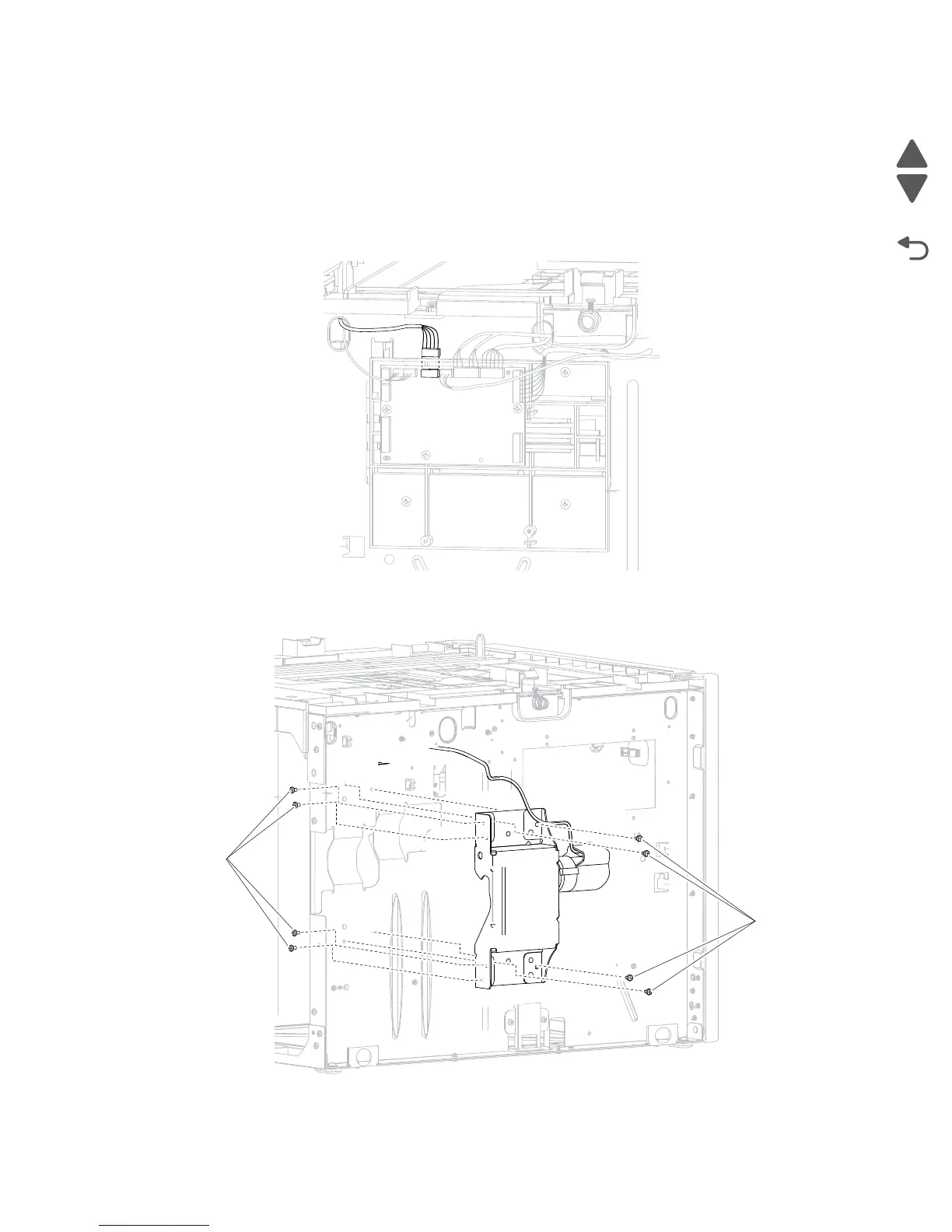

4. Remove the eight screws (A) securing the HCIT tray lift drive motor assembly.
5. Remove the HCIT tray lift drive motor assembly.
