4-70 Service Manual
7462
Go Back
Previous
Next
ADF media pinch pad assembly removal
1. Remove the ADF duplex CCD assembly. See “ADF duplex CCD assembly removal (X654, X656, and
X658)” on page 4-65. .
2. Remove the ADF pinch roll assembly. See “ADF pinch roll assembly removal” on page 4-67.
3. Remove the ADF turn guide. See “ADF turn guide removal” on page 4-67.

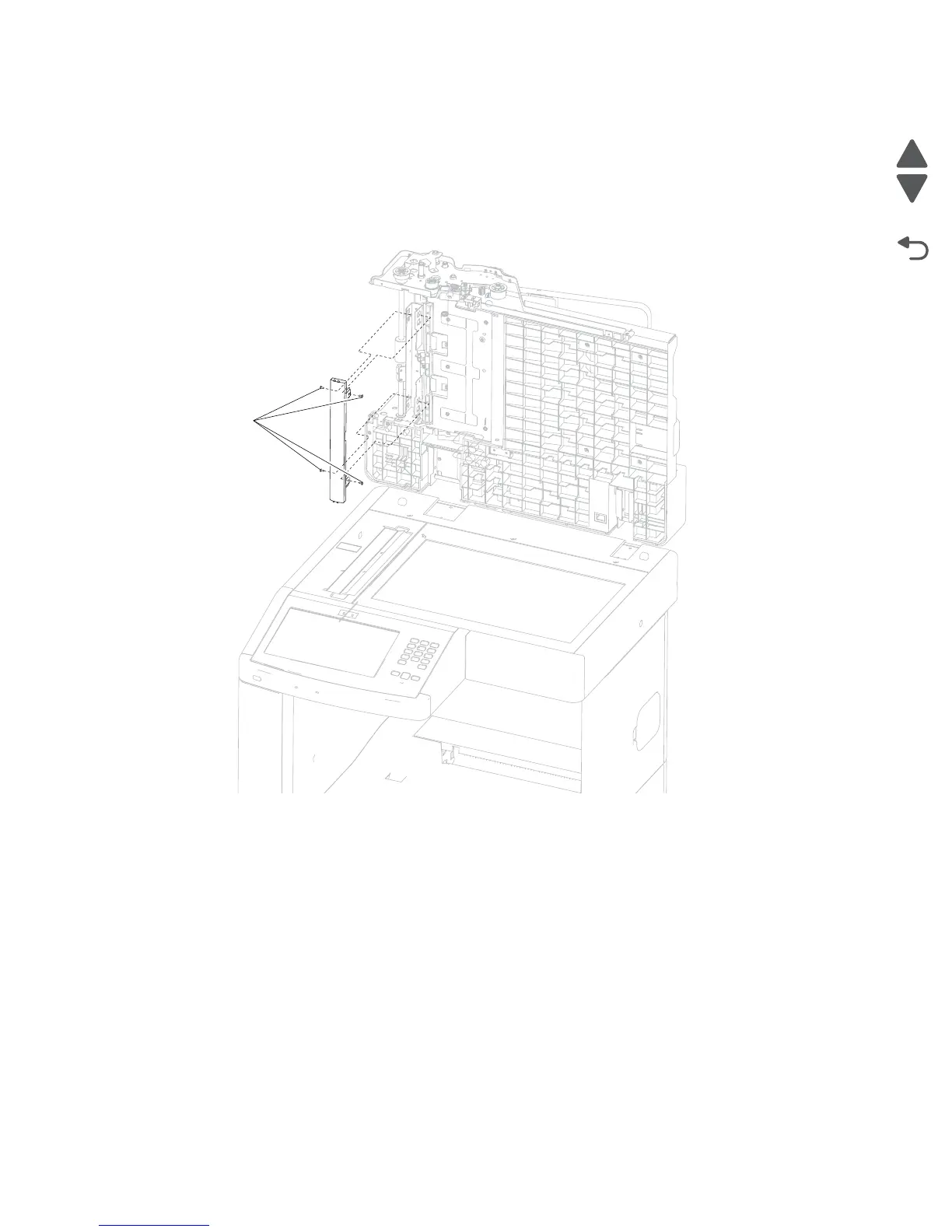

4. Remove the four screws (A) securing the ADF media pinch pad assembly.
5. Remove the ADF media pinch pad assembly.
A
