3-98 Service Manual

7462

Go Back

Media squareness check

This test is critical when cut paper is being used to align the ADF skew during reworks. Pallets of quality paper

may be found with more than 2 mm of skew.

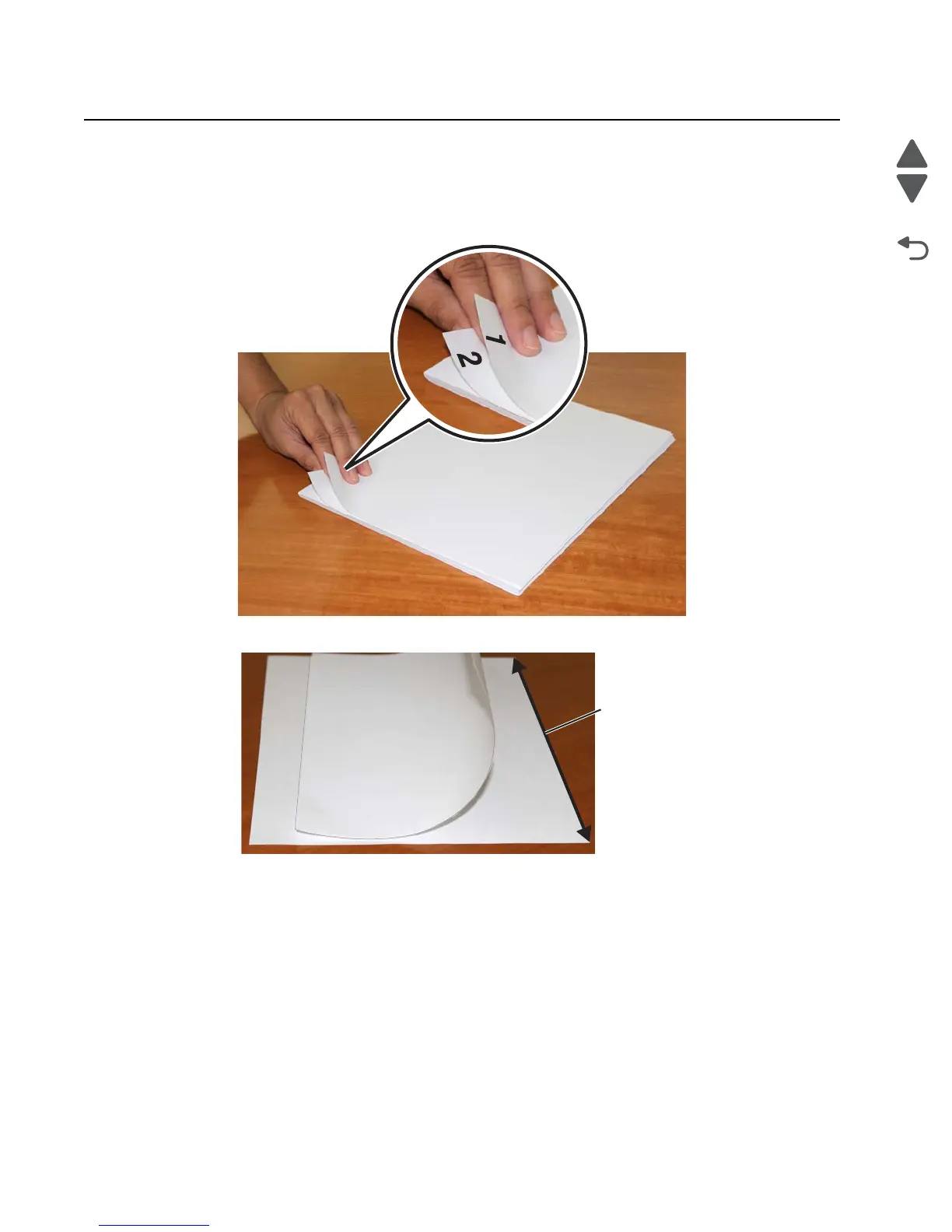

1. Remove two consecutive pieces of paper from the ream.

2. Flip one of the pages over in the direction shown below.

Long Edge
