Repair information 4-239

7462

Go Back

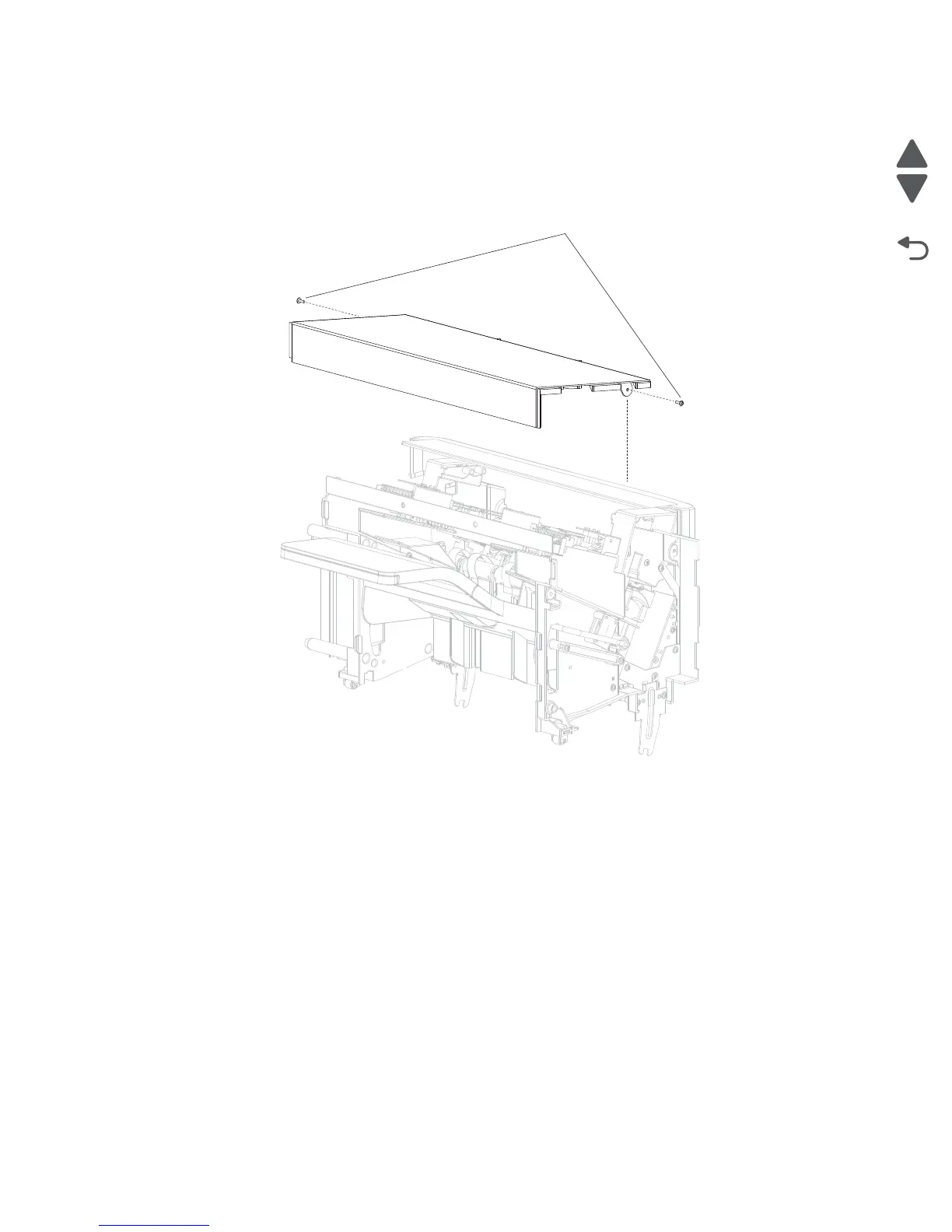

Offset stacker top cover removal

1. Remove the left and right cover. See “Offset stacker left cover removal” on page 4-238 and “Offset

stacker right cover removal” on page 4-237.

2. Remove the screw (A) on each side of the top cover.

3. Pull up and toward the front to remove the offset stacker top cover.
