Diagnostic aids 3-75
7462
250-sheet/550-sheet tray assembly

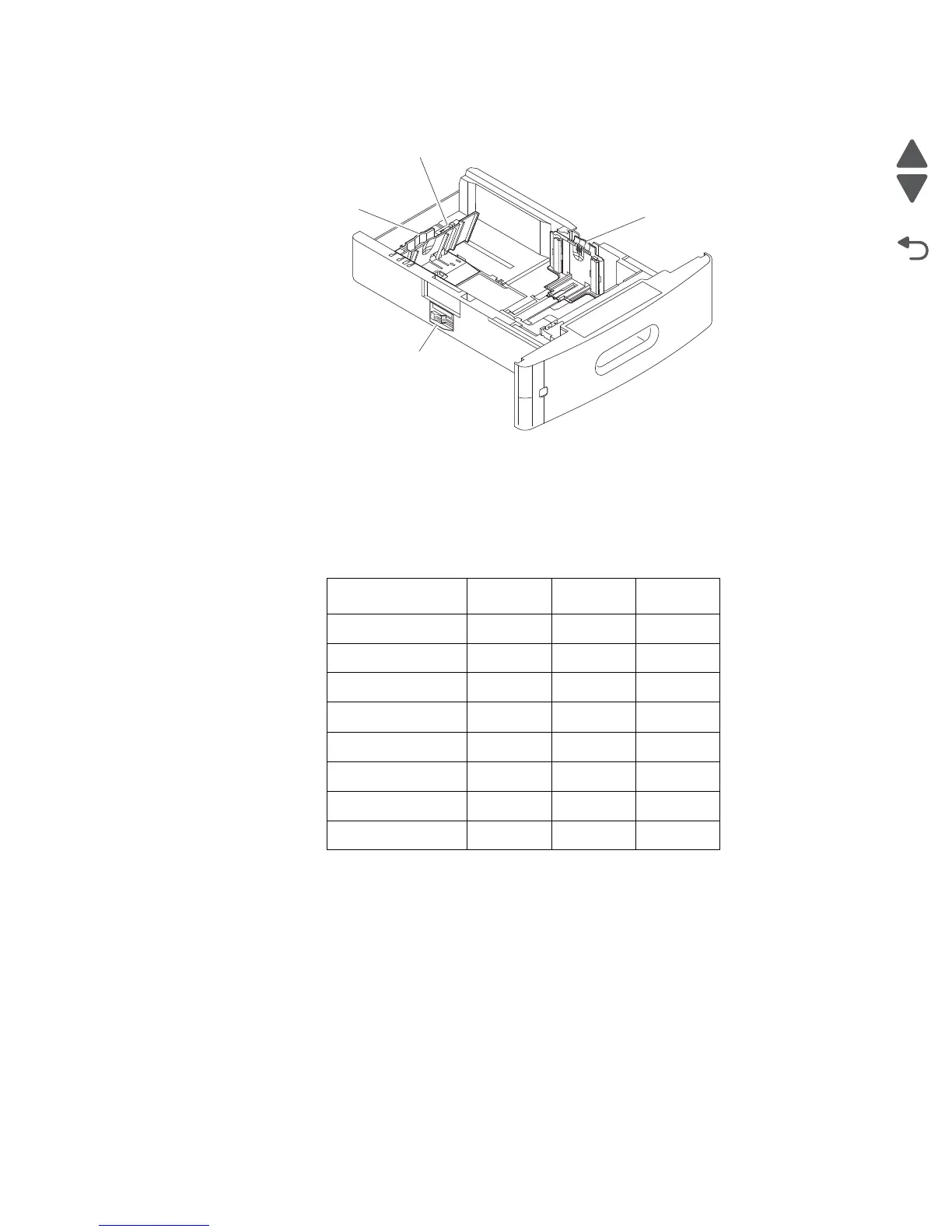

Media size sensing
The media size set for the media tray assembly is set by positioning the right media guide, unlocking the slider
lock, and sliding the rear paper guide. The rear paper guide triggers the movement of the auto size sensing
finger, which then sets the switches of the controller card board. The combination of ON/OFF position of the
three switches provides information of the media sizes to the engine.
Note: Media size sensing through ON/OFF switch combination
Media size SW 1 SW 2 SW 3
Unknown OFF OFF OFF
A4 OFF OFF ON
Legal OFF ON OFF
B5 OFF ON ON
A5 ON OFF OFF
Executive ON OFF ON
Letter ON ON OFF
Custom ON ON ON
Rear media tray guide
Lockable back restraint
Media end guide
Auto size finger actuator
