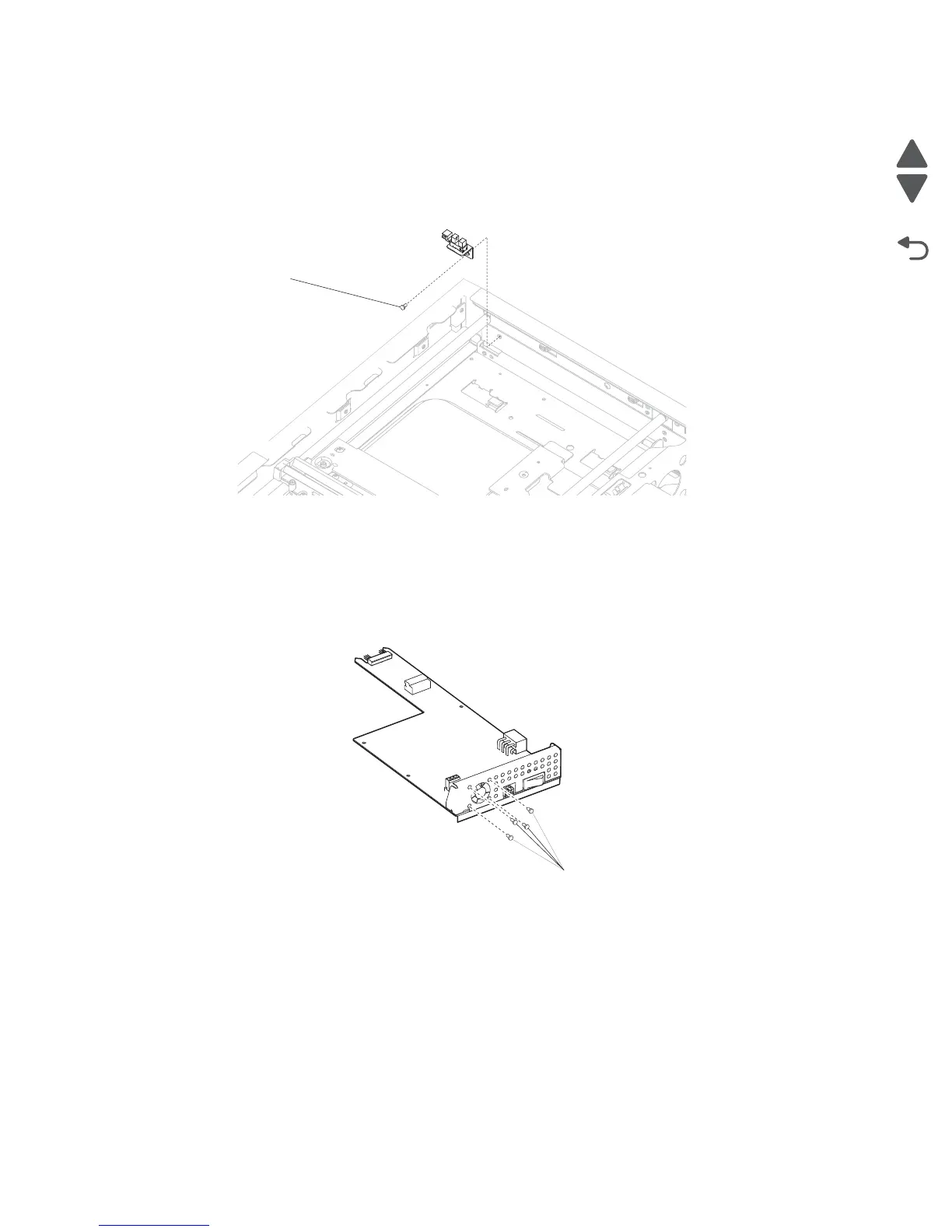

Sensor (scanner HP) assembly w/bracket removal
1. Remove the scanner platen glass cover assembly. See “Scanner platen glass cover assembly removal
(models X651, X652, X654 and X656)” on page 4-137 or “Scanner platen glass cover assembly
removal (model X658)” on page 4-136.
2. Remove screw (A) securing the HP sensor bracket to the flatbed frame.
3. Pull the bracket from the frame, and remove the sensor wire harness.
4. Remove the sensor (scanner HP) assembly with bracket.
LVPS cooling fan
1. Remove the LVPS card assembly. See “LVPS card assembly removal” on page 4-45.
2. Remove the four screws (A) securing the LVPS cooling fan.
3. Disconnect the connection from the LVPS cooling fan.
A
A
