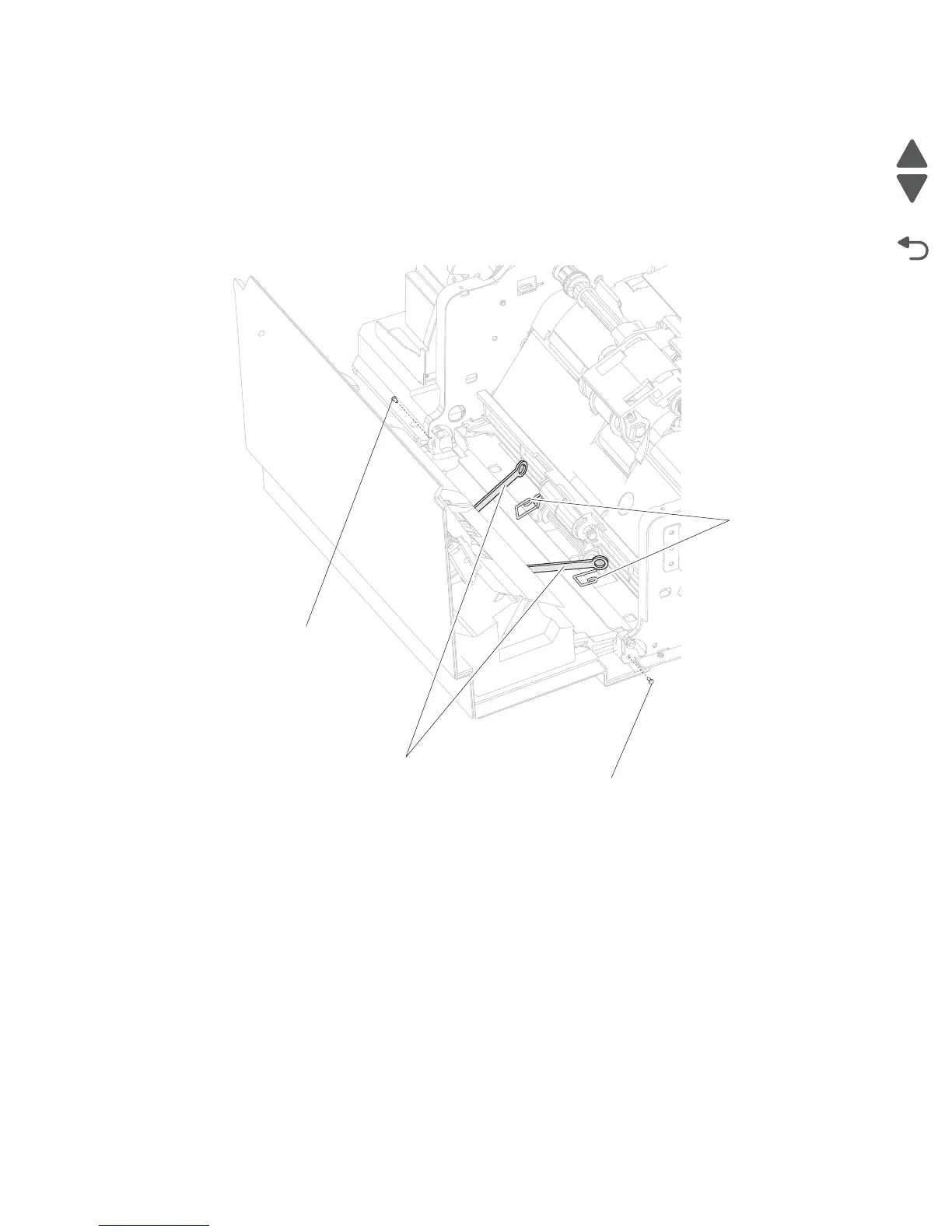

ADF top door assembly removal
1. Remove the ADF cover, front. See “ADF cover, front removal” on page 4-59.
2. Remove the ADF cover, rear. See “ADF cover, rear removal” on page 4-60.
3. Lift the ADF top door assembly.
4. Push down on the spring clips (A) on the left and right sides.
5. Remove the ADF left door links (B).
6. Unscrew the two hinge pins (C) on the left and right side.
C
C
B
A
