Repair information 4-71
7462
Sensor (ADF media exit) fan bracket assembly removal (X654, X656, and X658)
1. Remove the ADF cover, front. See “ADF cover, front removal” on page 4-59.
2. Remove the ADF rear cover. See “ADF cover, rear removal” on page 4-60.
3. Open the ADF top door assembly.
4. Disconnect the ground strap, the fan (CN12) harness, and the media exit sensor (CN9) harness.

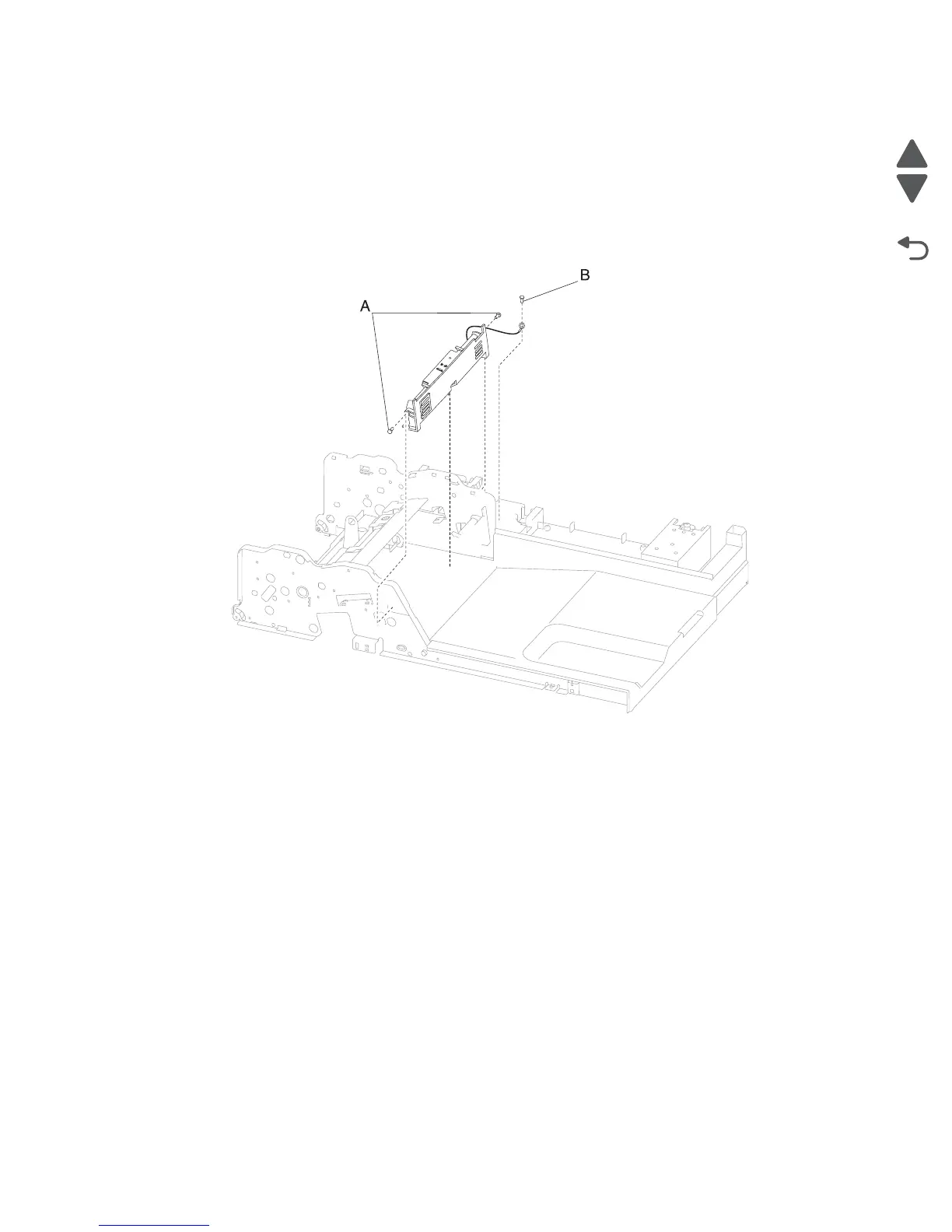

5. Remove the two screws (A) on the front and rear of the sensor (ADF media exit) fan bracket assembly.
6. Remove screw (B) from the ground strap.
7. Remove the sensor (ADF media exit) fan bracket assembly.
ADF transport drive motor bracket assembly w/cable removal
1. Remove the ADF cover, rear. See “ADF cover, rear removal” on page 4-60.
2. Remove the ADF transport drive motor bracket tension spring (A).
3. Remove the wires from the retaining clip (B) on top of the bracket.
4. Disconnect the ADF transport drive motor harness.
