4-244 Service Manual

7462

Go Back

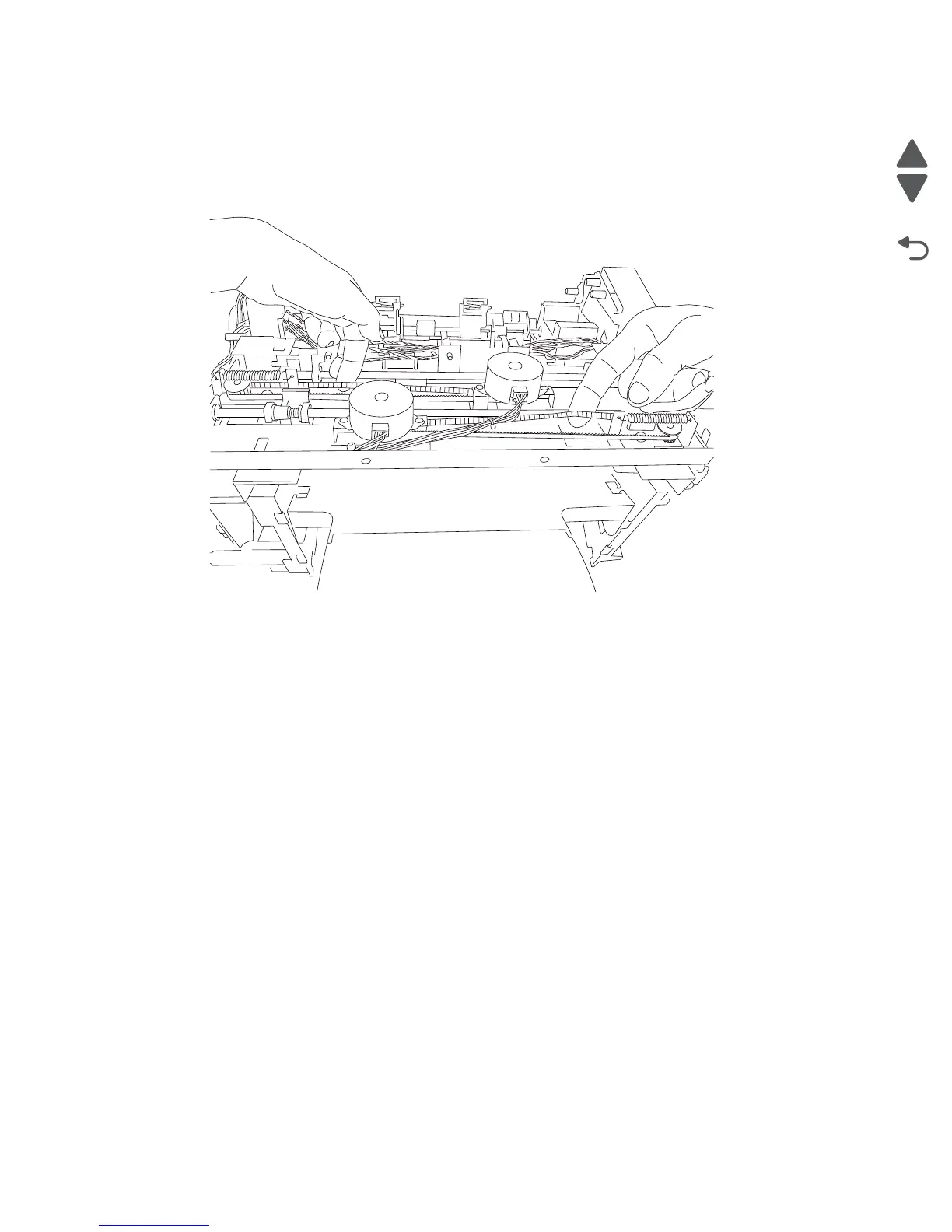

Offset stacker tamper drive belt removal

1. Remove the offset stacker tamper recoil spring. See “Offset stacker tamper drive belt removal” on

page 4-244.

2. Pull the belt out the tamper belt holder and remove the belt from the pulley.
