Repair information 4-25
7462
MPF lift plate assembly removal
1. Remove the media turn guide. See “Media turn guide removal” on page 4-12.

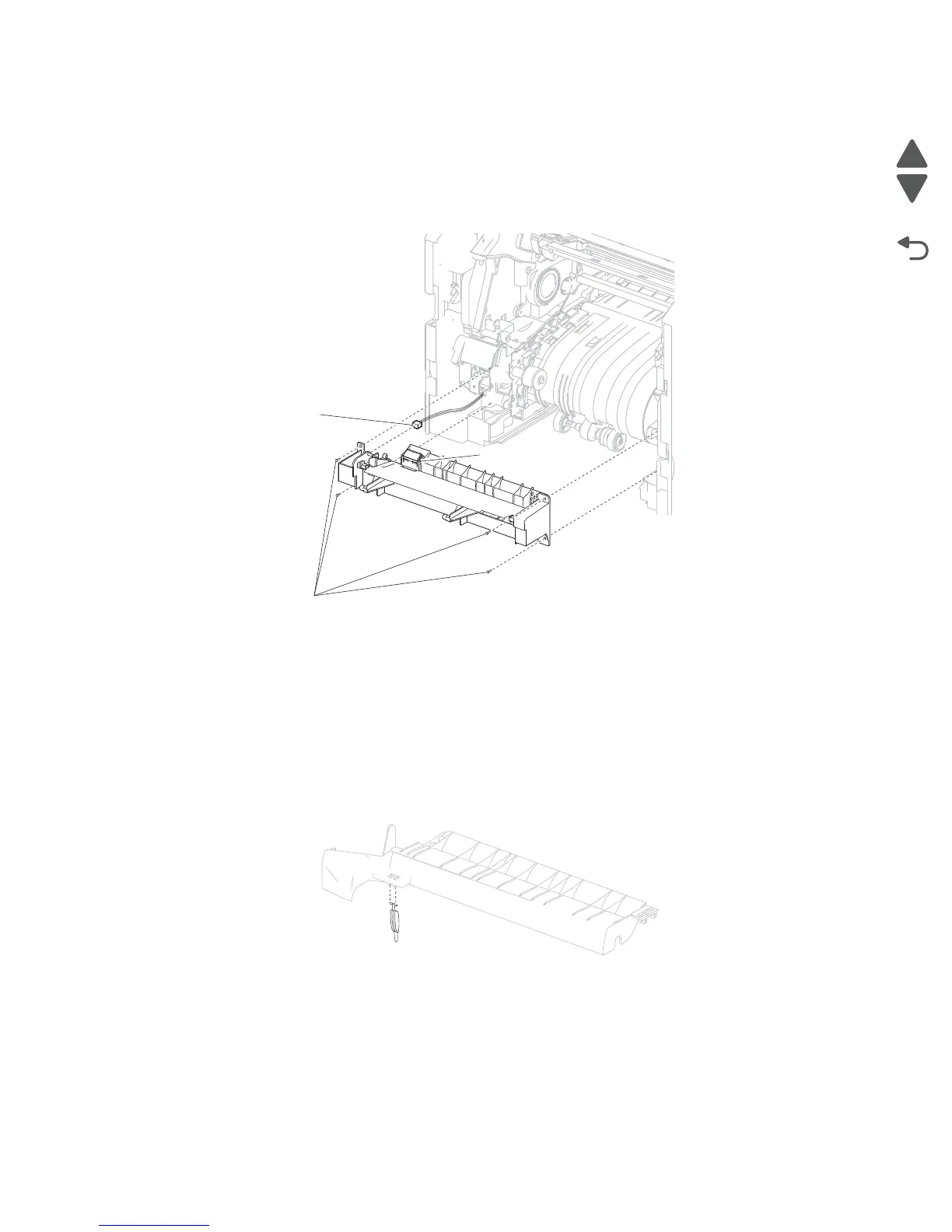

2. Remove the four screws (A) securing the MPF lift plate assembly to the machine.
3. Gently detach the MPF lift plate assembly.
4. Disconnect the connector (B) from the MPF lower deflector assembly.
5. Remove the MPF lift plate assembly.
Replacement Warning: When replacing the MPF lift plate assembly, ensure that the lever (C) is held down
when reinstalling the MPF lift plate assembly, or damage will occur.
Replacement Warning: When replacing the MPF lift plate assembly, ensure that the MPF pick solenoid
assembly does not become damaged.
MPF media out actuator removal
1. Remove the media turn guide. See “Media turn guide removal” on page 4-12.
2. Gently unsnap the MPF media out actuator from the machine.
3. Remove the media out actuator.
