Repair information 4-87
7462
Sensor (ADF media exit) bracket assembly removal (X651)
1. Remove the ADF cover, front. See “ADF cover, front removal” on page 4-59.
2. Remove the ADF rear cover. See “ADF cover, rear removal” on page 4-60.
3. Open the ADF top door assembly.
4. Disconnect the ground strap, the fan (CN12) harness, and the media exit sensor (CN9) harness.

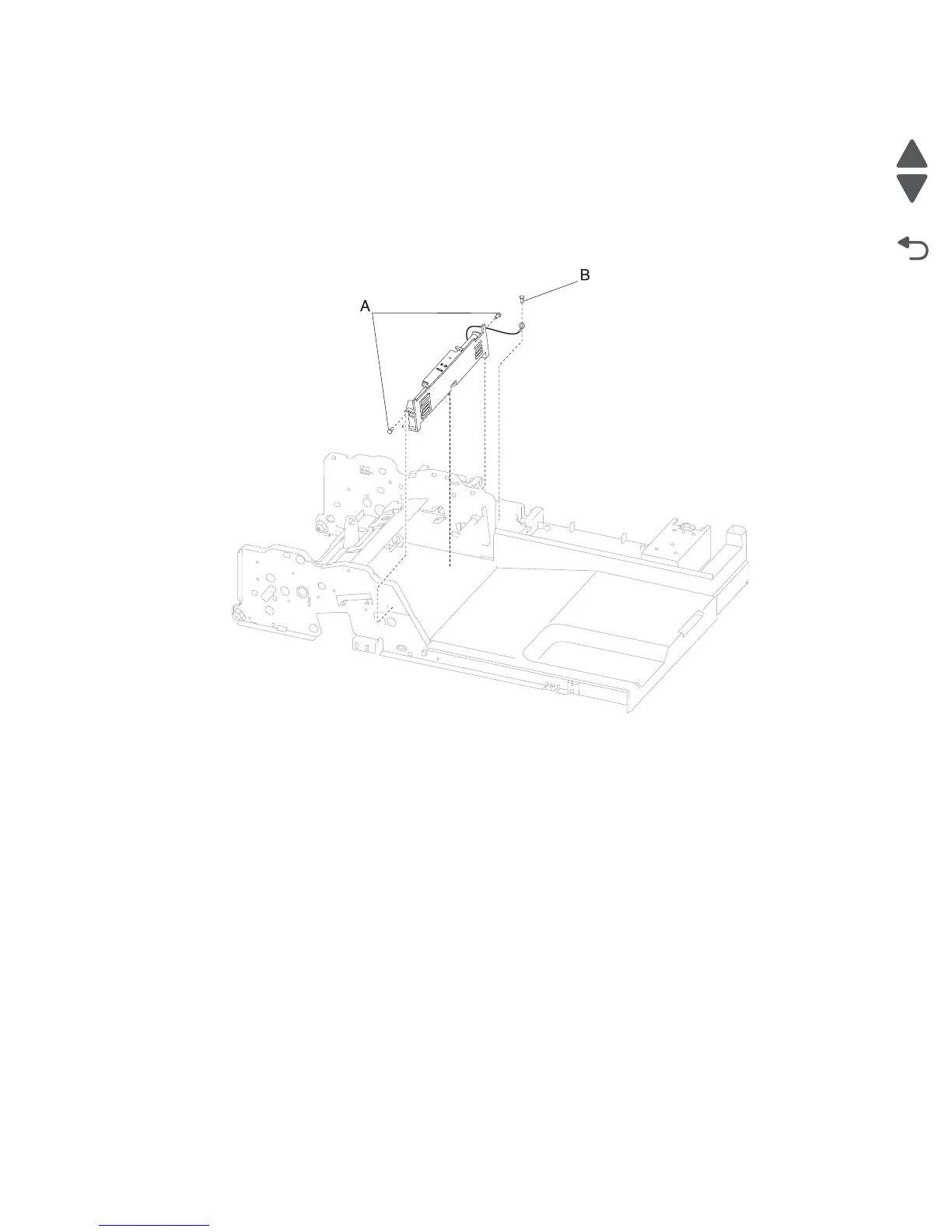

5. Remove the two screws (A) on the front and rear of the sensor (ADF media exit) fan bracket assembly.
6. Remove screw (B) from the ground strap.
7. Remove the sensor (ADF media exit) fan bracket assembly.
