MFP stapler assembly sensor (media stack) removal

1. Remove the top cover. See “MFP stapler assembly top cover removal” on page 4-198.

2. Disconnect the harness to the sensor (media stack).

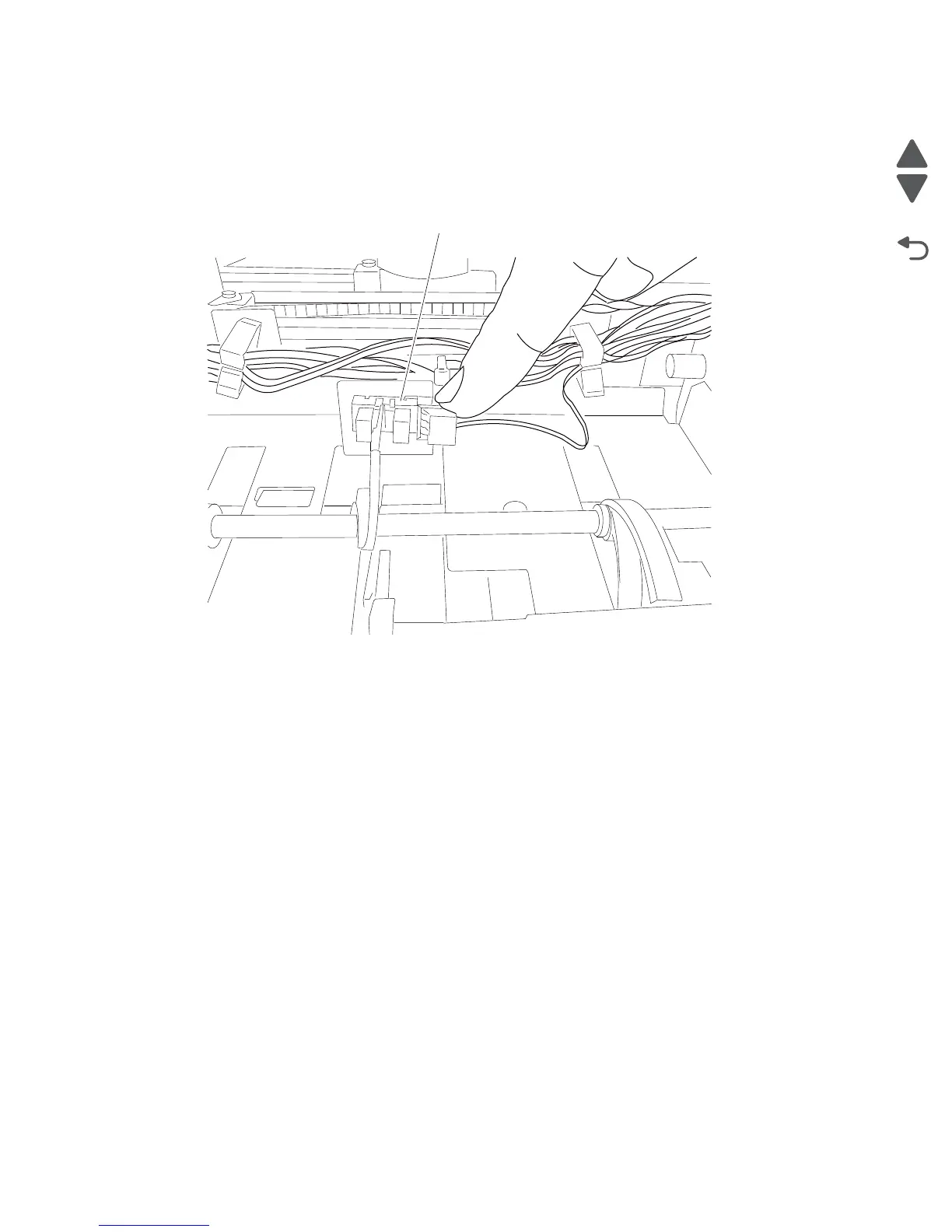

3. Using your fingers, pinch tab (A) securing the sensor (media stack) and remove.
