MFP stapler assembly sensor (paddle HP) removal

1. Remove the left cover. See “MFP stapler assembly left cover removal” on page 4-197.

2. Disconnect the harness to the sensor (paddle home position).

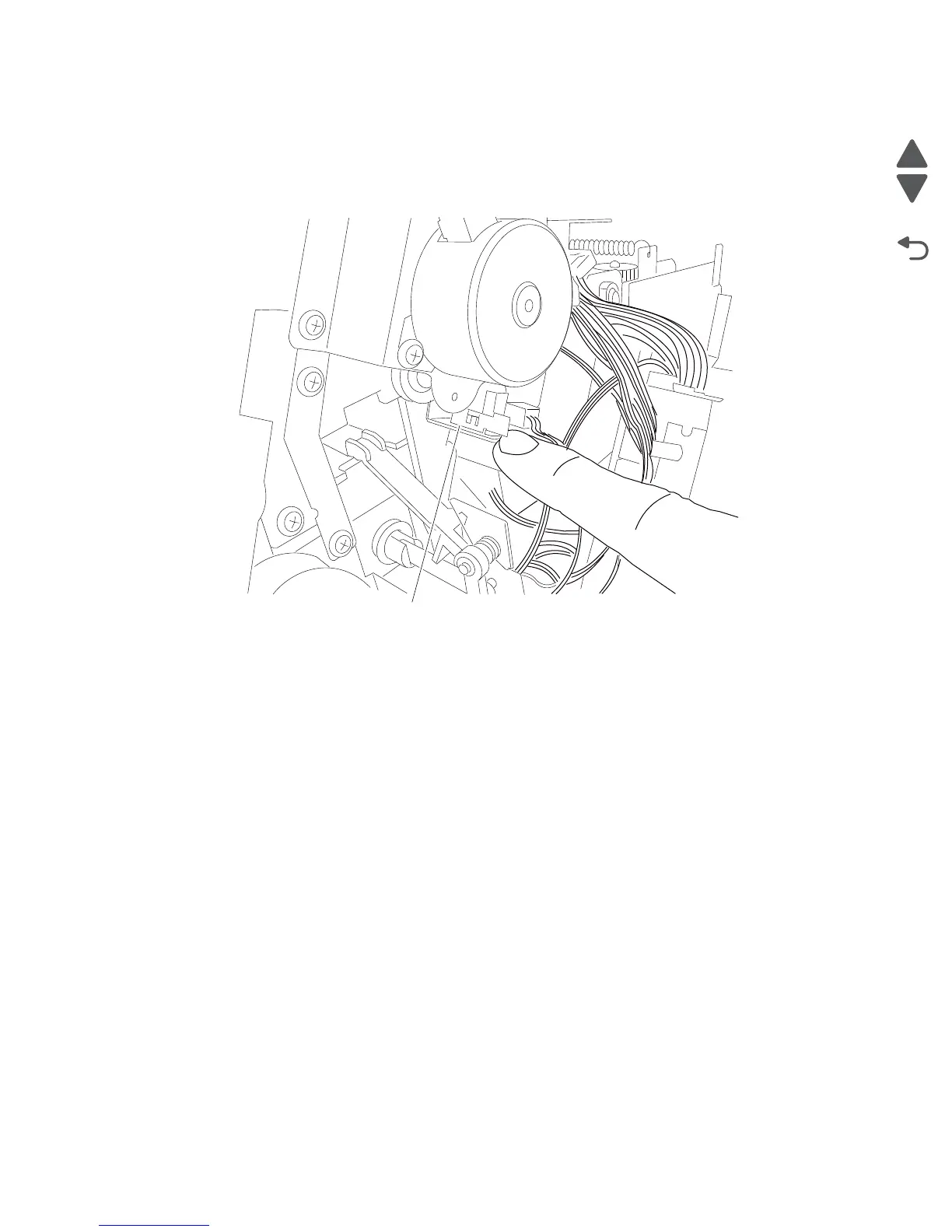

3. Using your fingers, pinch tab (A) securing the sensor (paddle home position) and remove.

Default Chapter3
