Repair information 4-121
7462
Side cover, left removal (models X651, X652, X654, and X656)
1. Remove the door assembly, rear. See “Door assembly, rear removal” on page 4-122.
2. Remove the rear lower door. See “Cover, rear lower removal” on page 4-123.
3. Remove the paper tray.
4. Open the MPF door.
5. Open the cartridge access door.

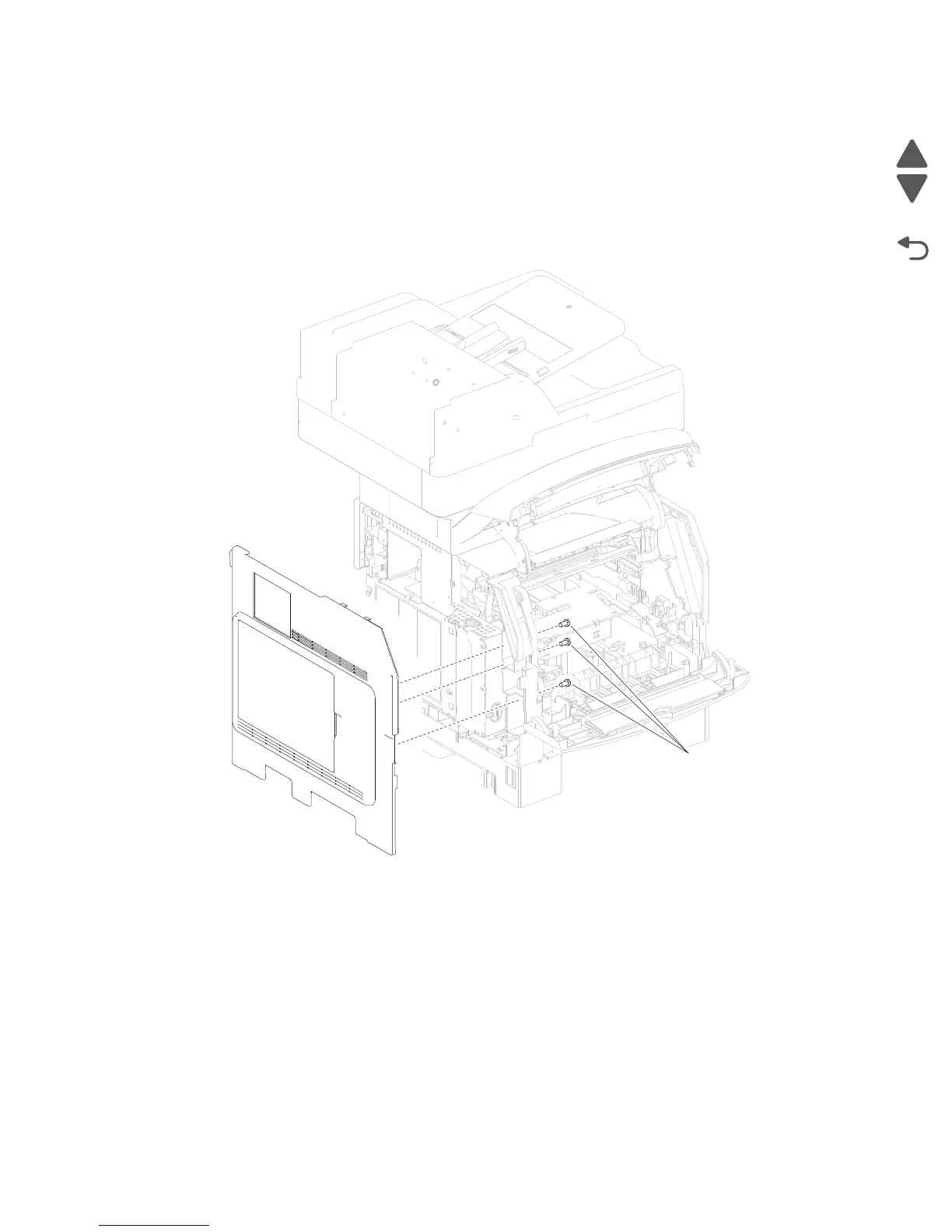

6. Remove the three screws (A) securing the side cover, left to the machine.
7. Remove the side cover, left by pulling out the tabs on the top and bottom and by pulling the cover out of its
rear hinges.
