4-120 Service Manual

7462

Go Back

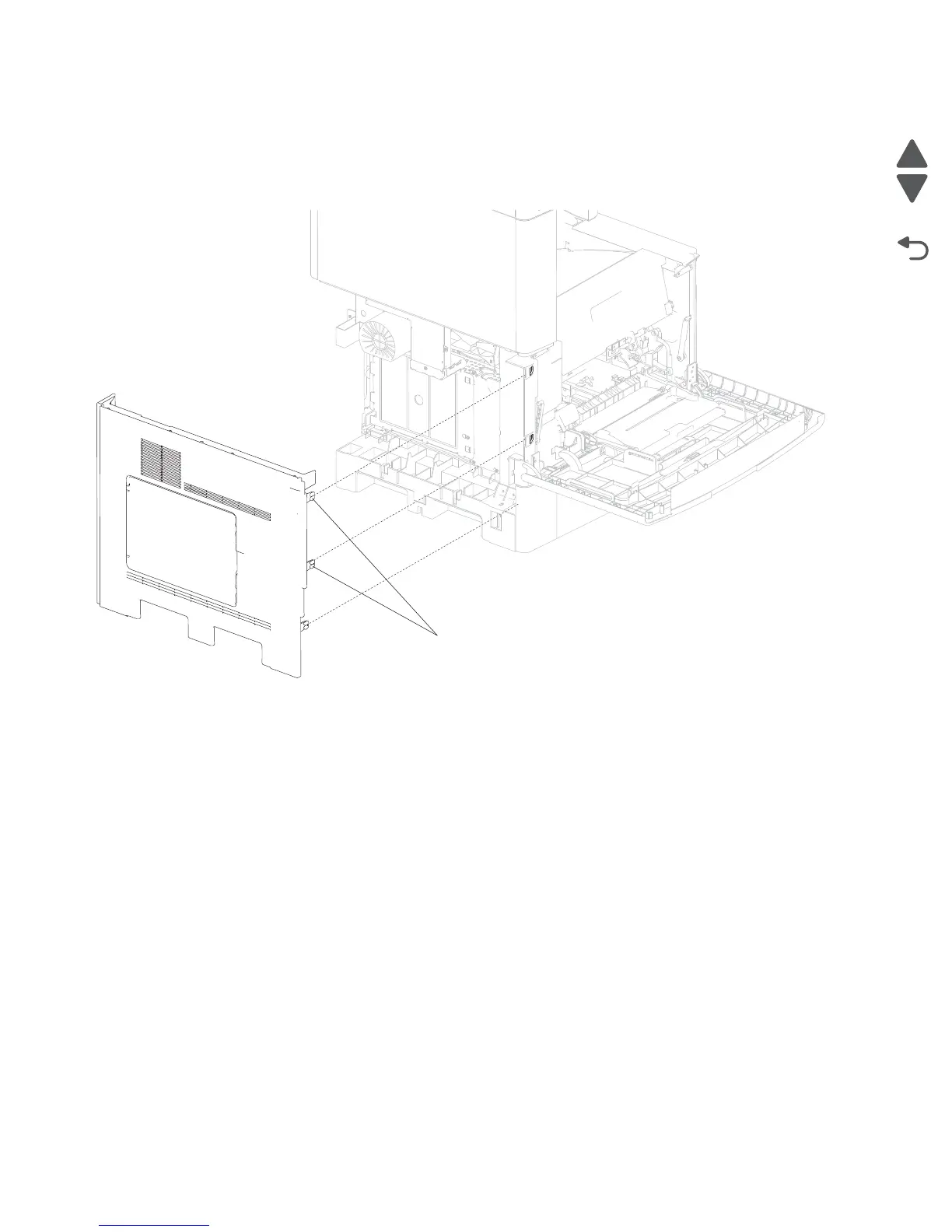

Side cover, left removal (model X658)

1. Remove the cover, left rear corner. See “Cover, left rear corner removal (model X658)” on page 4-84.

2. Open the cartridge access door.

3. Release the two tabs (A) in the front.

4. Remove the side cover, left.
