Repair information 4-119
7462
Side cover, right removal (models X651, X652, X654, and X656)
1. Remove the door assembly, rear assembly. See “Door assembly, rear removal” on page 4-122.
2. Remove the cover, rear lower. See “Cover, rear lower removal” on page 4-123.
3. Open the paper tray.
4. Open the MPF door.
5. Open the front door assembly.

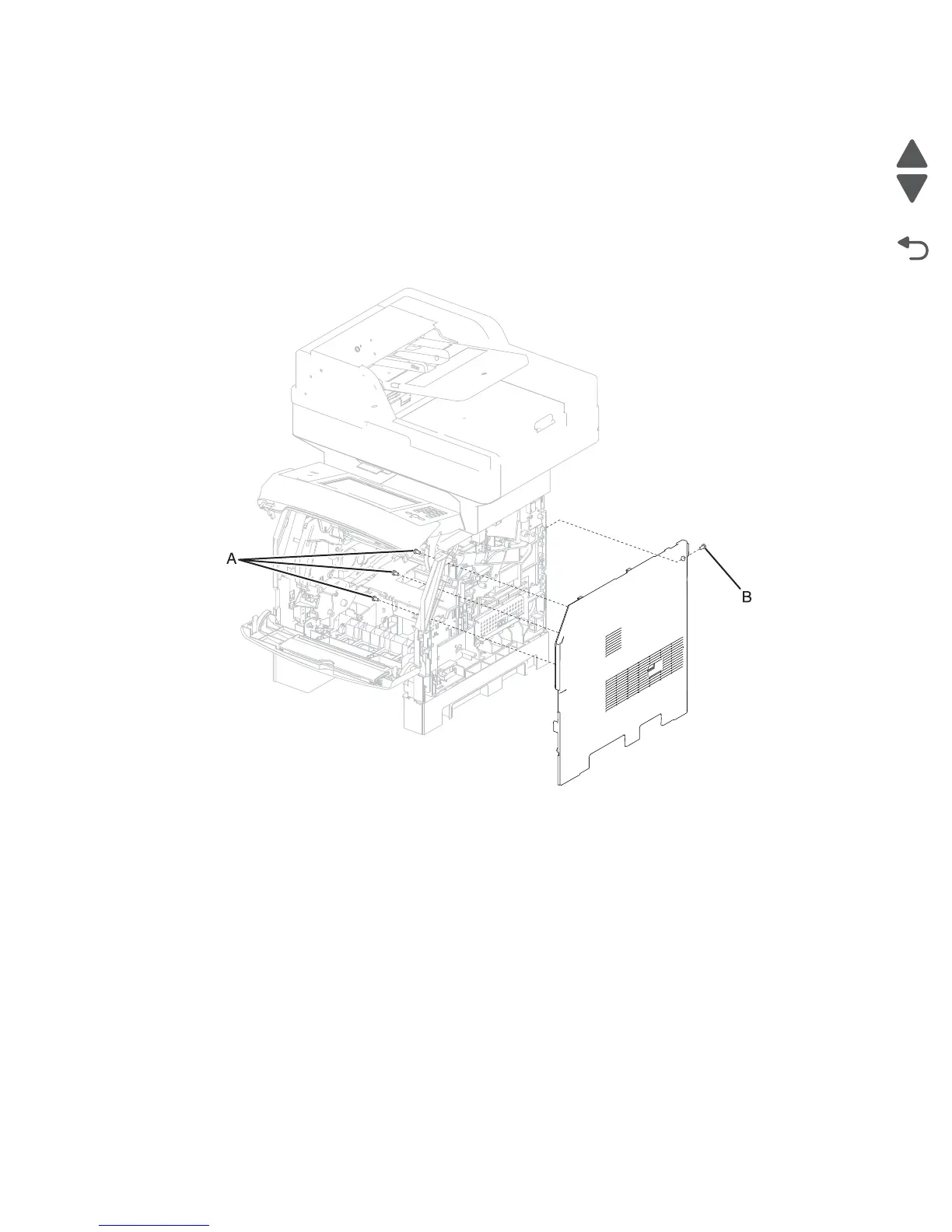

6. Remove three screws (A) from the front.
7. Remove the screw (B) from the rear.
8. Firmly grasp the cover from the top, and pull out to remove.
