4-118 Service Manual

7462

Go Back

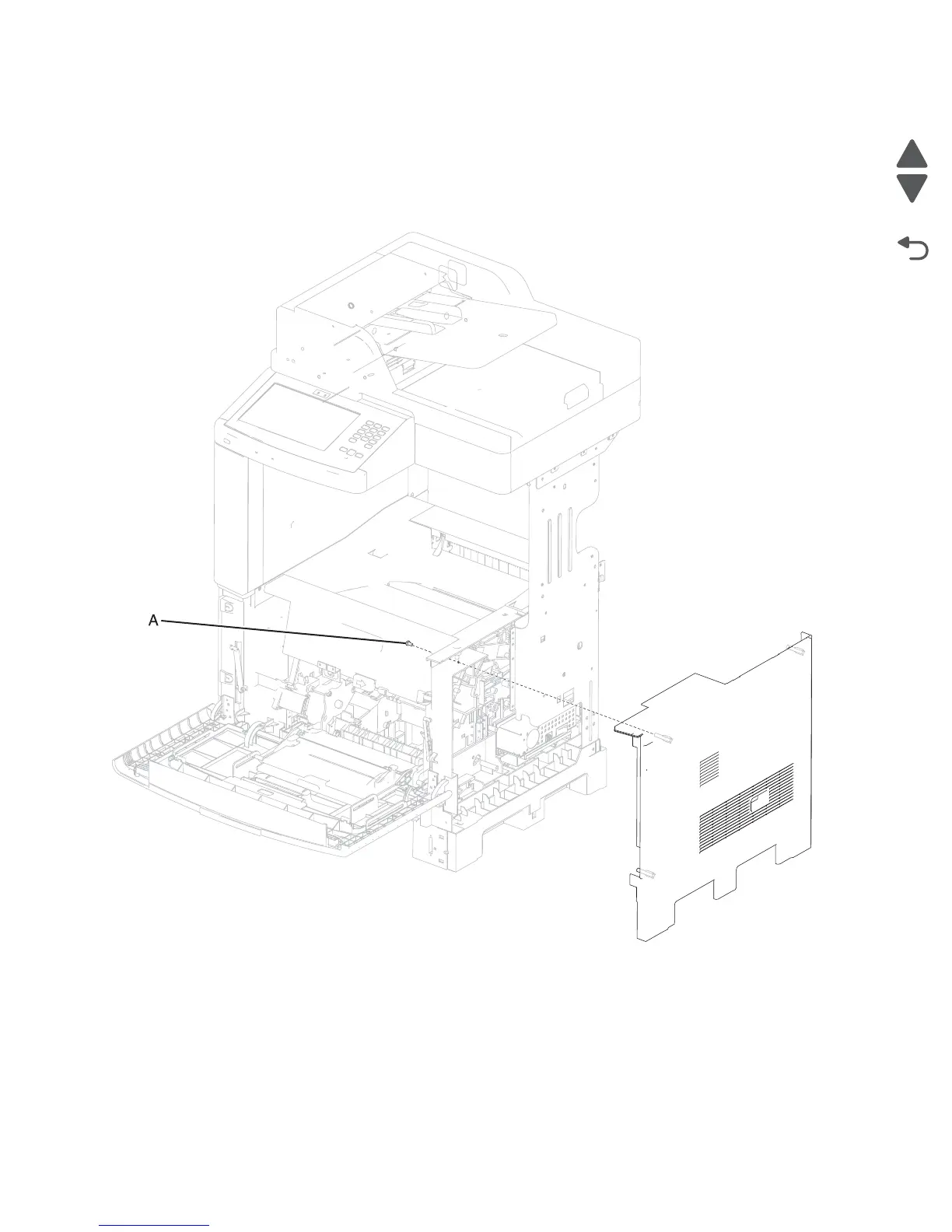

Side cover, right removal (model X658)

1. Remove the cover, left rear corner. See “Cover, left rear corner removal (model X658)” on page 4-84.

2. Open the front door.

3. Open the cartridge access door.

4. Remove the screw (A), and pull the side cover, right up and out to remove.
