4-144 Service Manual
7462

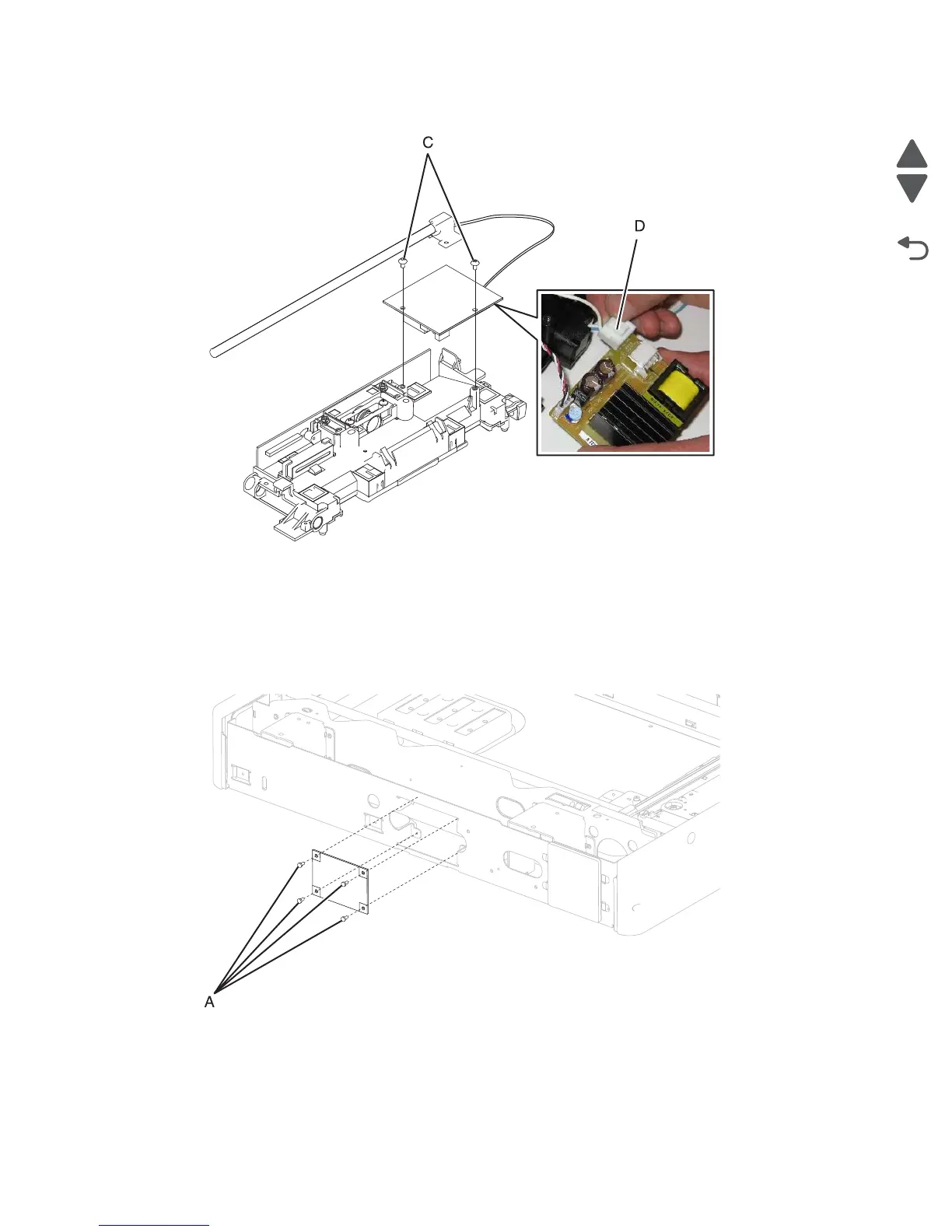

6. Remove the scanner exposure lamp wiring harness from the clips (D) on the CCD assembly.
7. Remove the scanner exposure lamp by lifting up on the rear end and pulling the lamp out of the grommet.
Scanner interface card assembly removal
1. Remove the scanner cover, rear. See “Scanner cover, rear removal” on page 4-130.
2. Remove the wire harnesses from the scanner interface card.
3. Remove the four screws (A) securing the scanner interface card to the flatbed frame.
4. Remove the scanner controller card.
