High capacity input tray (HCIT) tray closed latch with spring removal
The left and right tray closed latches with springs are the same, and only one is in a package. The instructions
below are for removing the left latch; removing the right latch has similar instructions.
1. Remove the HCIT tray assembly. See “High capacity input tray (HCIT) media tray assembly removal”
on page 4-152.

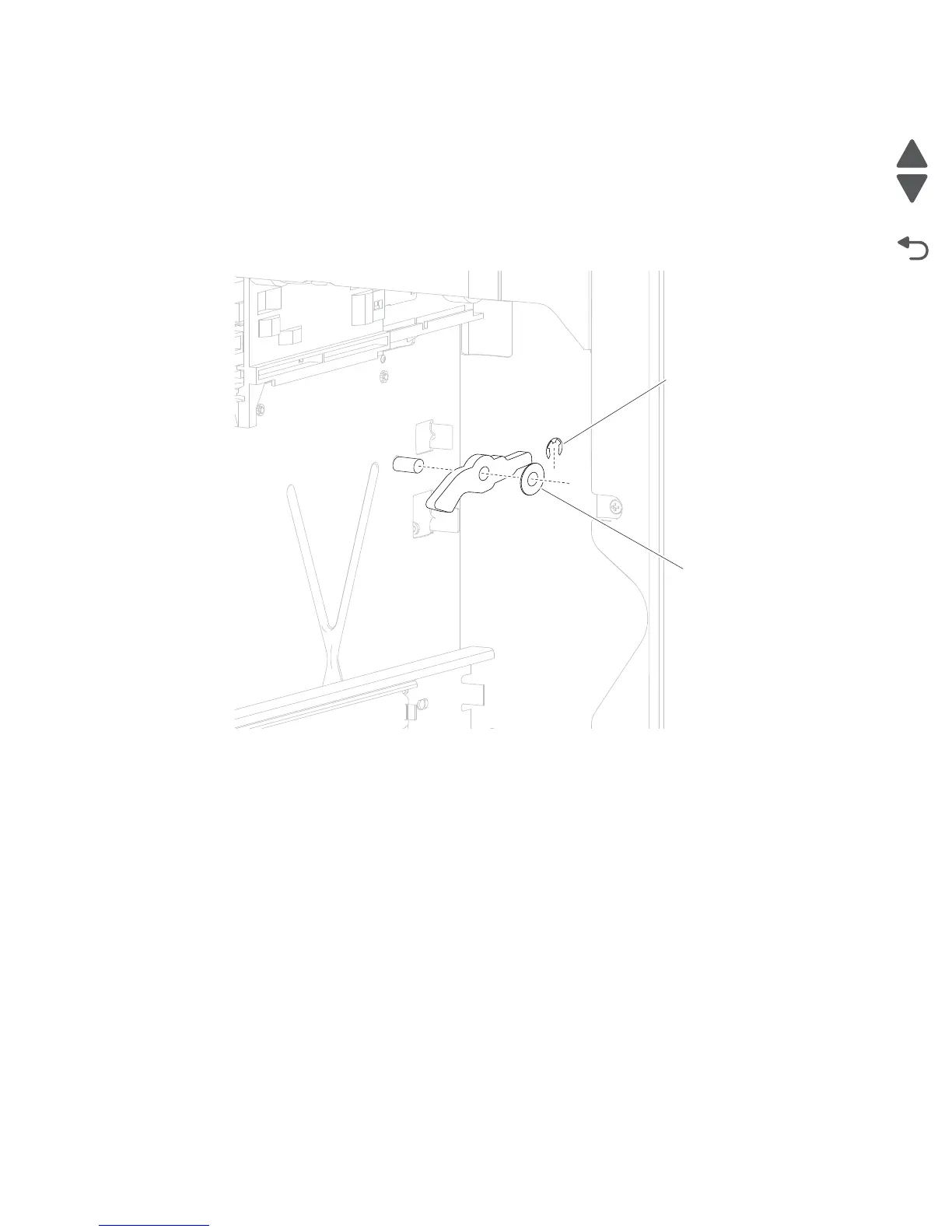

2. Remove the E-clip (A) and the washer (B) with a prying tool securing the HCIT tray closed latch with spring
to the left frame.
3. Remove the HCIT tray closed latch with spring.
