Lexmark T65 Series Service Manual

Repair information 4-67
7462
Go Back
Previous
Next
ADF pinch roll assembly removal
1. Remove the ADF top door assembly. See “ADF top door assembly removal” on page 4-61.

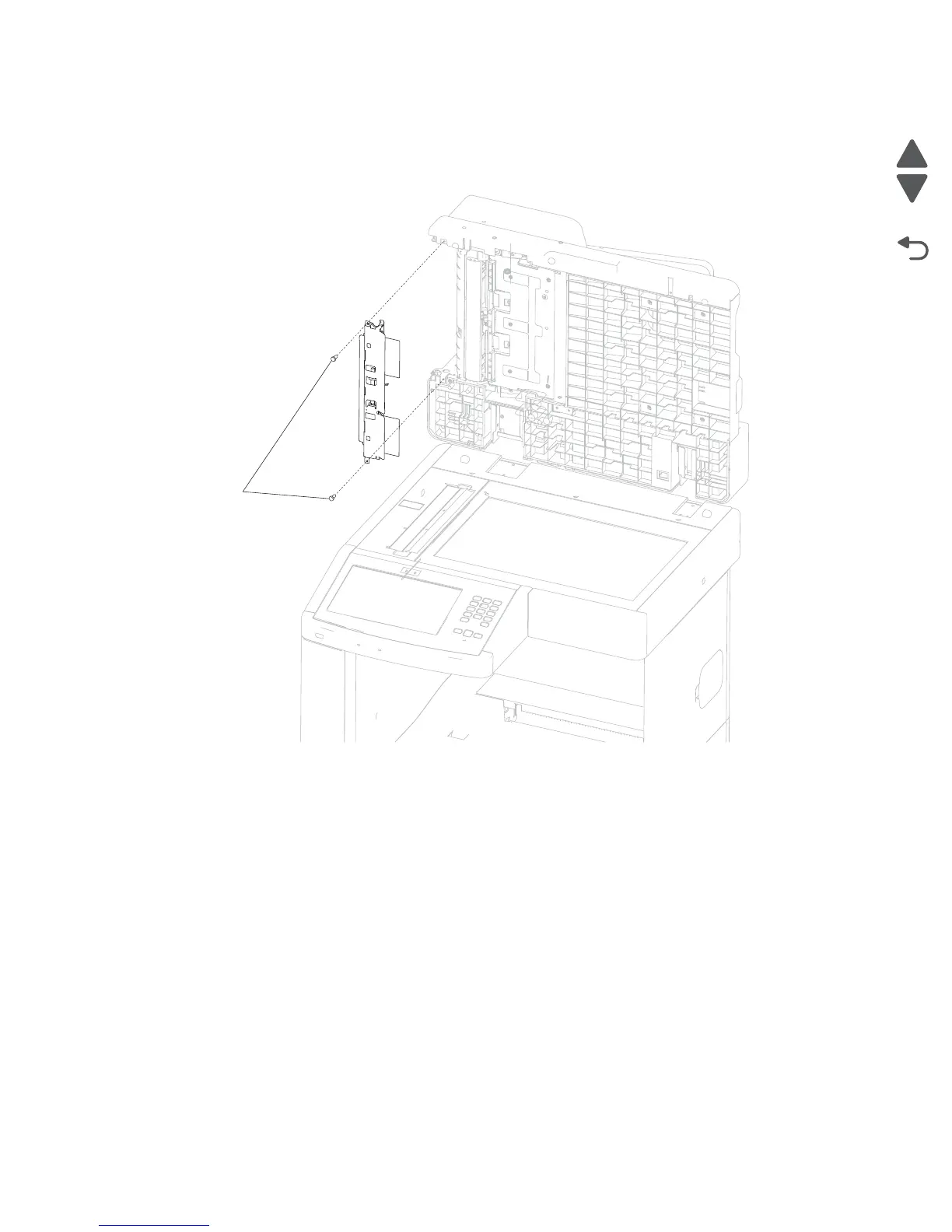

2. Remove the two screws (A) on either side of the ADF pinch roll assembly.
3. Remove the ADF pinch roll assembly.
ADF turn guide removal
1. Remove the ADF pinch roll assembly. See “ADF pinch roll assembly removal” on page 4-67.
2. Remove the ADF separator torque limiter assembly. See “ADF separator torque limiter assembly
removal” on page 4-58.
3. Remove the two screws (A) from the front side. Be sure to secure the ground strap by the upper turn guide
screw when reinstalling.
A
