4-68 Service Manual

7462

Go Back

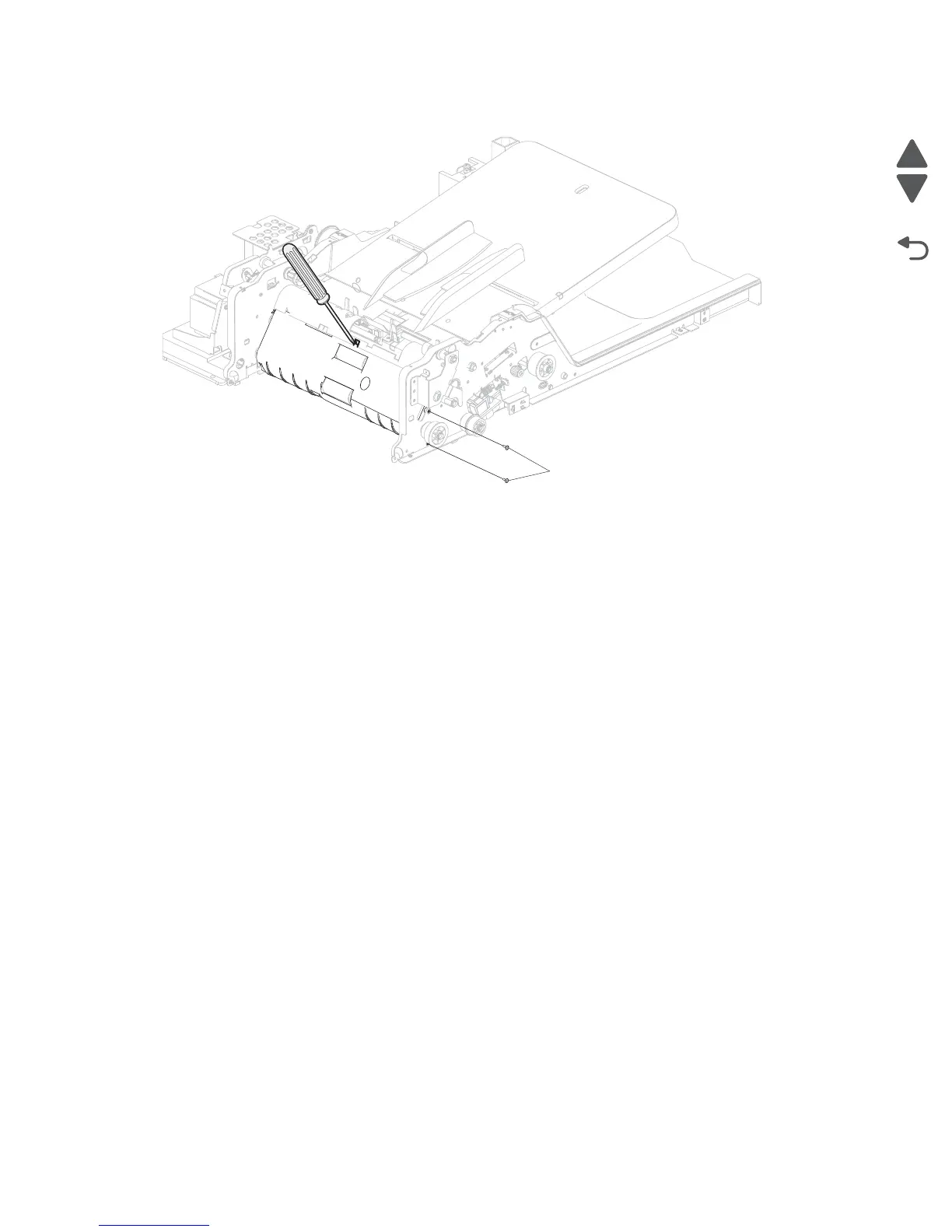

4. Using a flat-blade screwdriver, unfasten the hook securing the separator guide to the turn guide.

Note: Upon reassembly, reattach the hook by pressing with your fingers until it snaps into place.
