Lexmark T65 Series Service Manual

Repair information 4-157
7462
Go Back
Previous
Next
High capacity input tray (HCIT) cover, right removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
Note: Before removing the HCIT right cover, first remove the right side anti-tip latch assembly. See “High
capacity input tray (HCIT) anti-tip latch assembly removal” on page 4-161.
1. Remove the High capacity input tray (HCIT) cover, rear. See “High capacity input tray (HCIT) cover, rear
removal” on page 4-155.

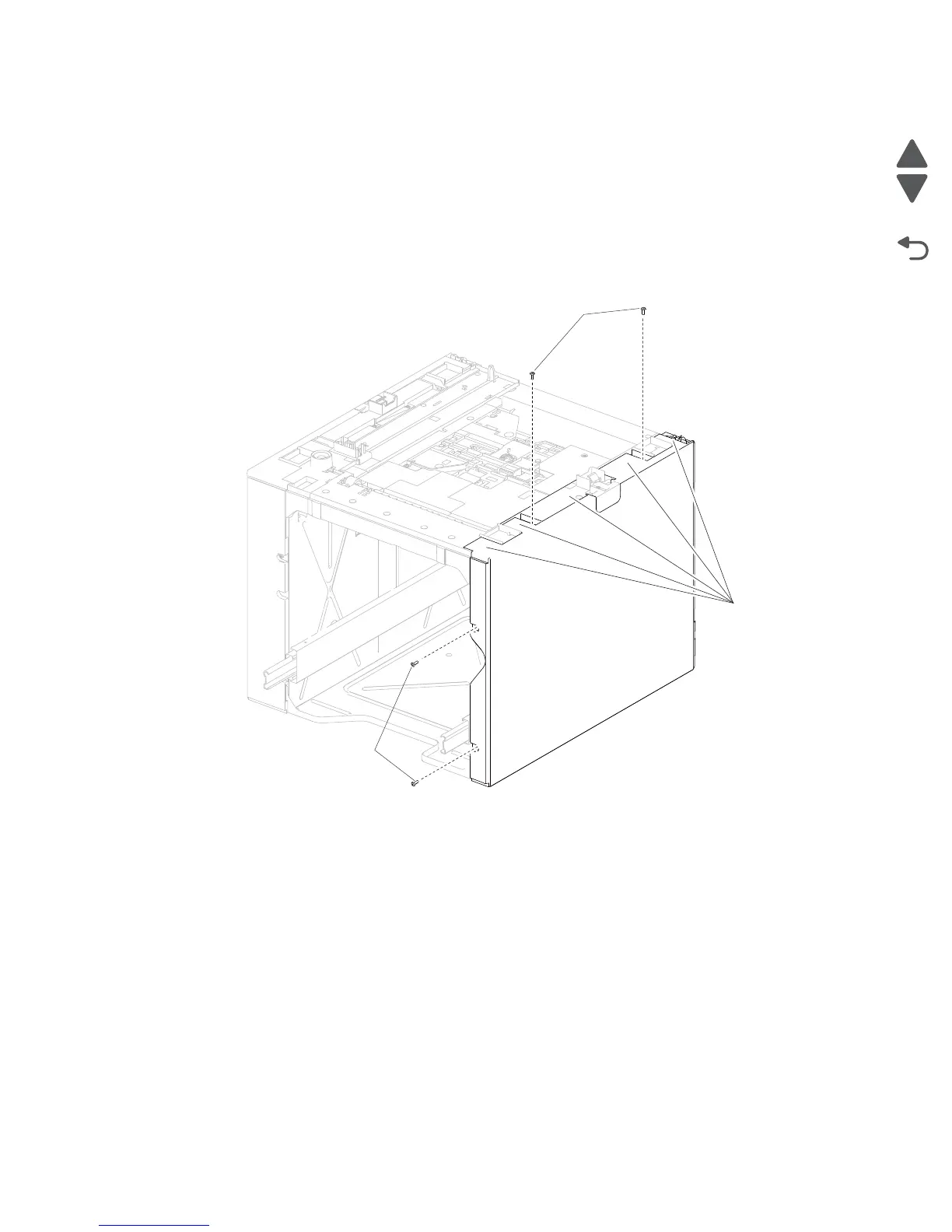

2. Remove the six screws (A) securing the HCIT cover, right to the drawer.
3. Use a screwdriver to gently pry up on the tabs (B).
A
B
A
