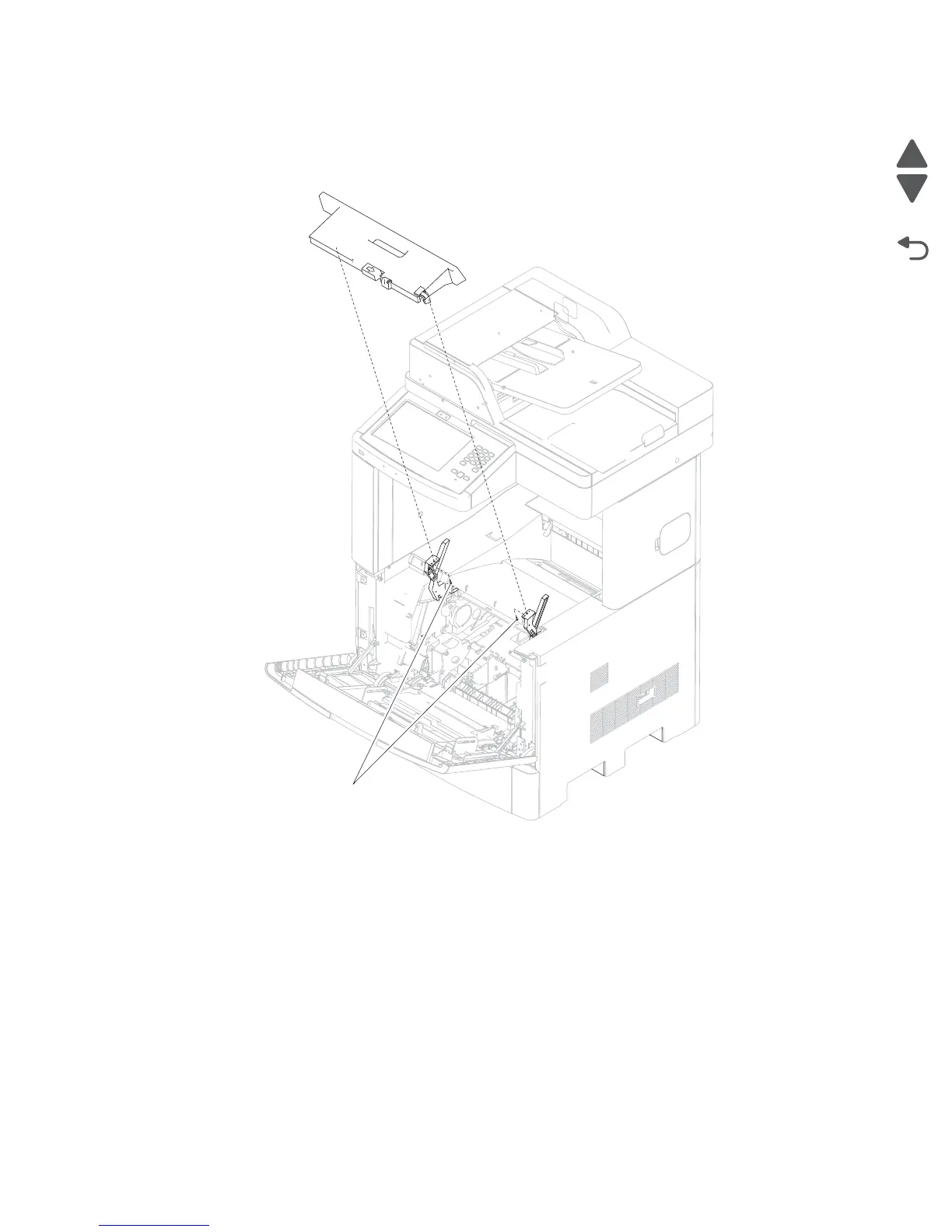

Print cartridge cover assembly removal (model X658)

1. Open the print cartridge cover assembly.

2. Remove the two screws (A) securing the print cartridge cover assembly.

3. Remove the cartridge access door.
