4-116 Service Manual

7462

Go Back

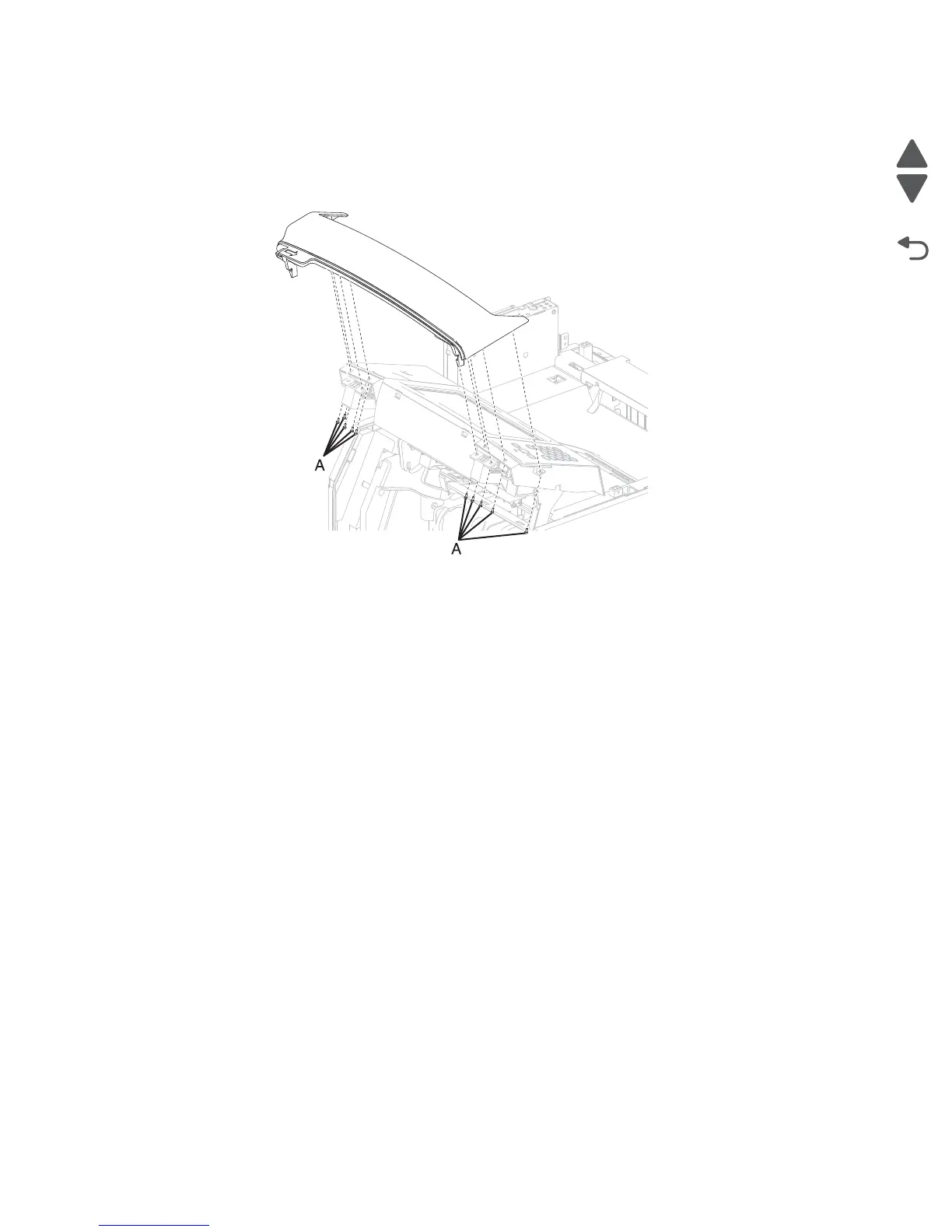

Operator panel cover latch assembly removal (models X651, X652, X654, and X656)

1. Lift the operator panel cover assembly.

2. Remove the ten screws (A) securing the operator panel cover latch assembly to the operator panel cover

assembly.

3. Remove the operator panel cover latch assembly.
