4-122 Service Manual

7462

Go Back

Door assembly, rear removal

1. Open the door assembly, rear.

2. Twist the door strap left or right until vertical, and pull the strap out of the slot.

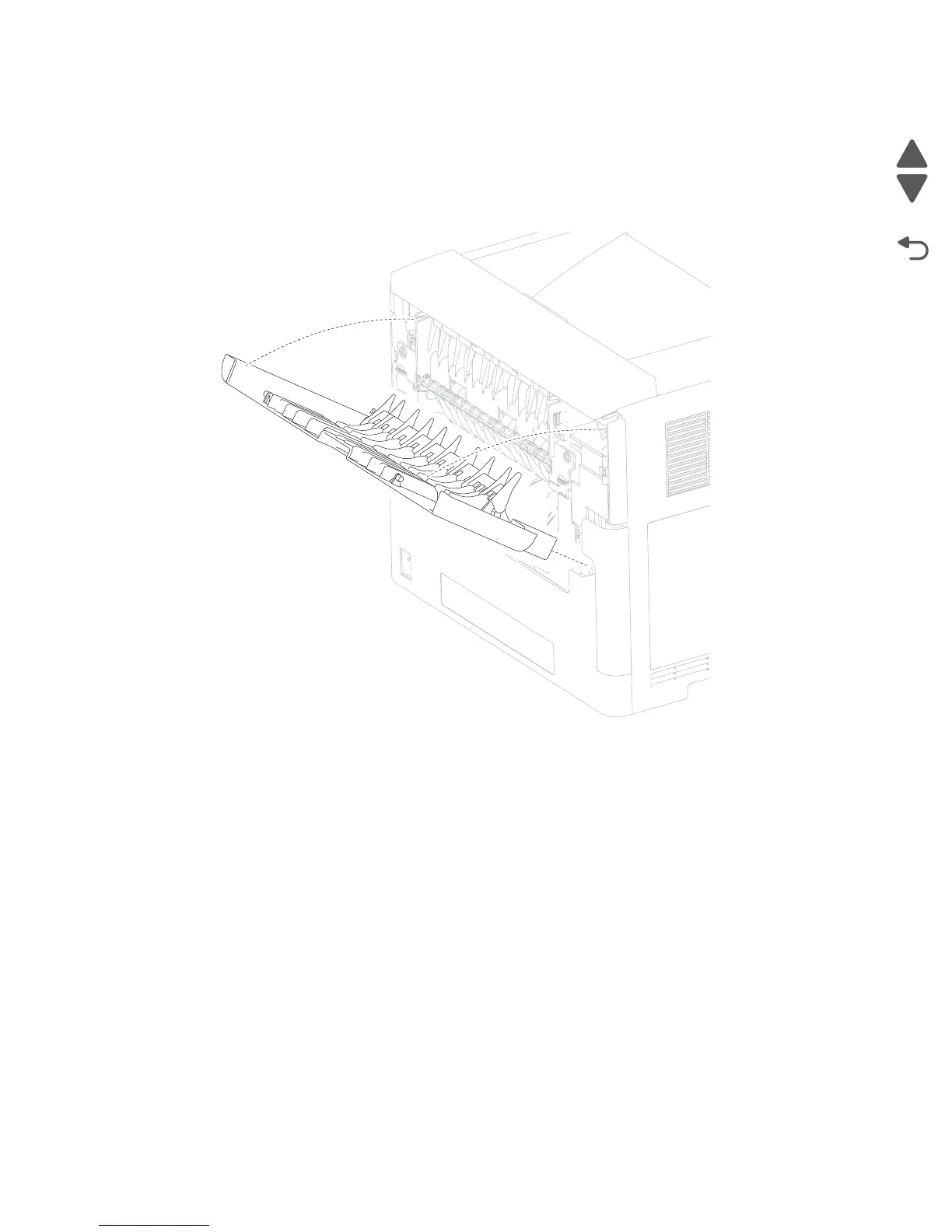

3. Position the door assembly, rear at a 45° angle as shown in the picture.

4. Remove the door assembly, rear.
