Repair information 4-123

7462

Go Back

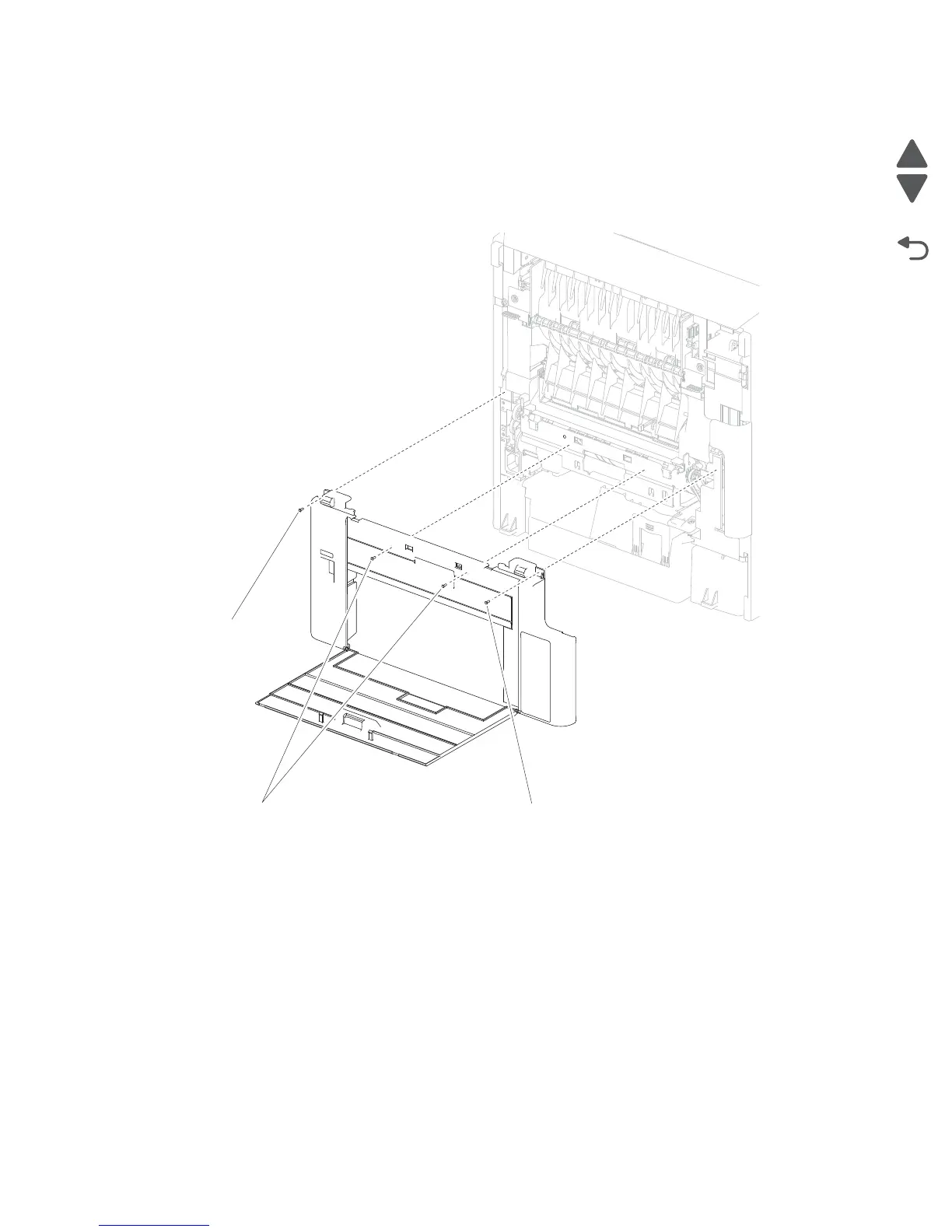

Cover, rear lower removal

1. Remove the door assembly, rear. See “Door assembly, rear removal” on page 4-122.

2. Remove the two screws (A) on each side of the cover.

3. Open the cover, rear lower.

4. Remove the remaining two screws (B).

5. Lift and remove the cover, rear lower.
