4-124 Service Manual

7462

Go Back

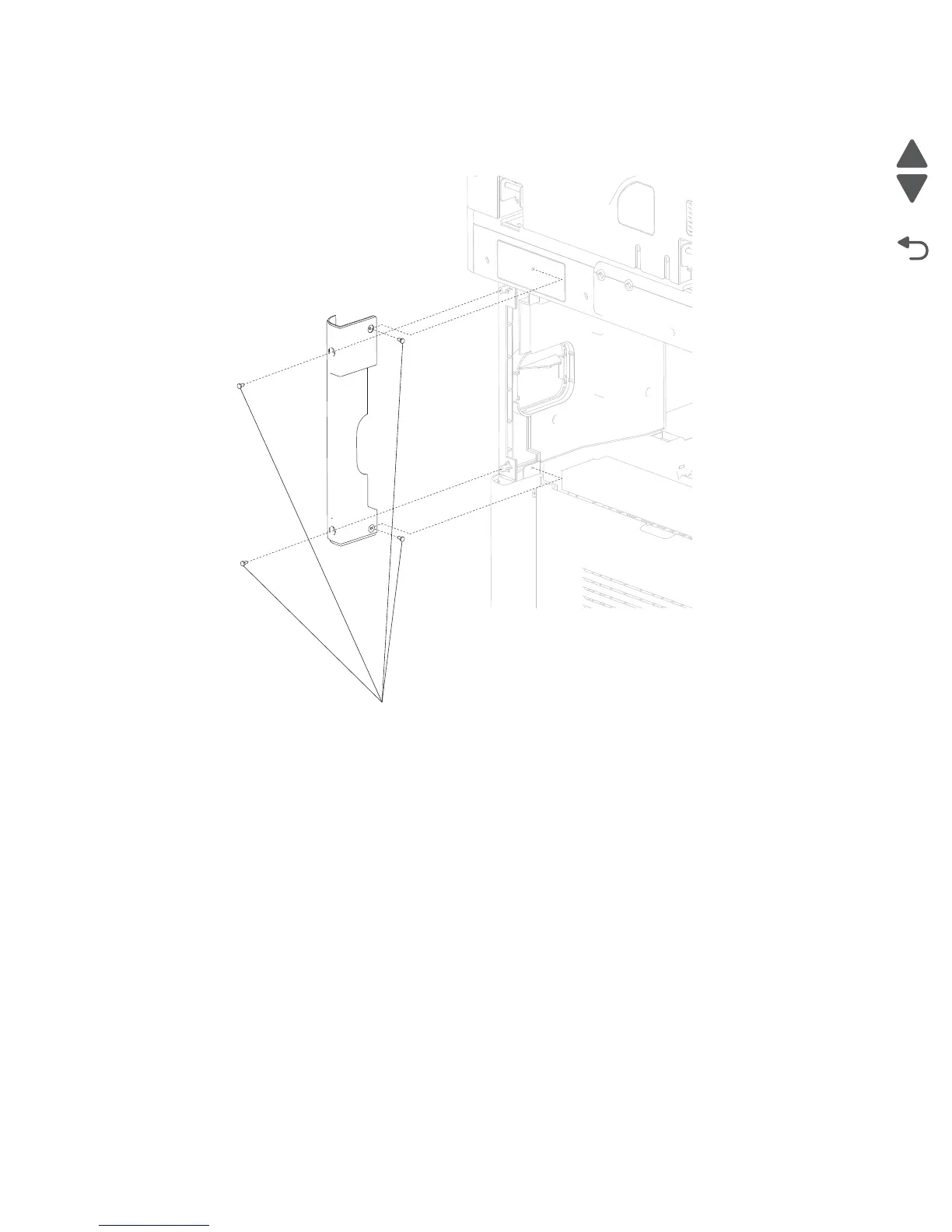

Scanner support cover, right rear removal (model X658)

1. Remove the four screws (A) securing the scanner support cover, right rear to the machine.

2. Remove the scanner support cover, right rear.
