4-22 Service Manual
7462
Go Back
Previous
Next

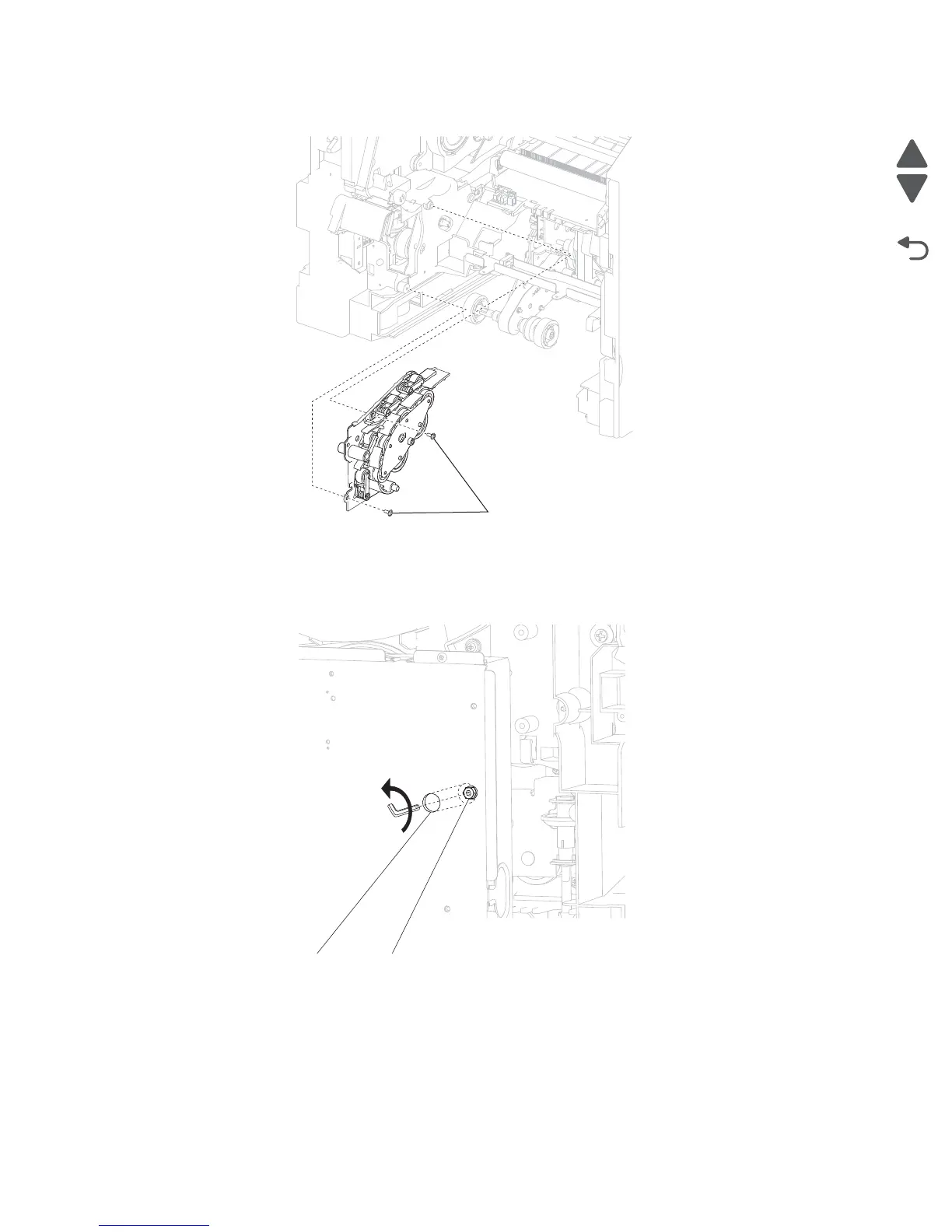

6. Remove the two screws (B) securing the alignment assembly to the machine.
Note: The adjuster screw (C) requires a hex wrench to loosen and tighten.
Note: The adjuster screw (C) can be accessed through the hole (D) in the system card.
7. Completely loosen the adjuster screw (C) securing the alignment assembly to the machine.
8. Remove the alignment assembly.
Replacement Warning: When replacing the alignment assembly, ensure that the media skew is properly
adjusted using the adjuster screw (C) or jamming will occur. Go to “Alignment assembly adjustment” on
page 4-3.
