Repair information 4-129

7462

Go Back

Scanner controller card assembly removal (models X651, X652, X654 and X656)

1. Remove the side cover, left. See “Side cover, left removal (models X651, X652, X654, and X656)” on

page 4-121.

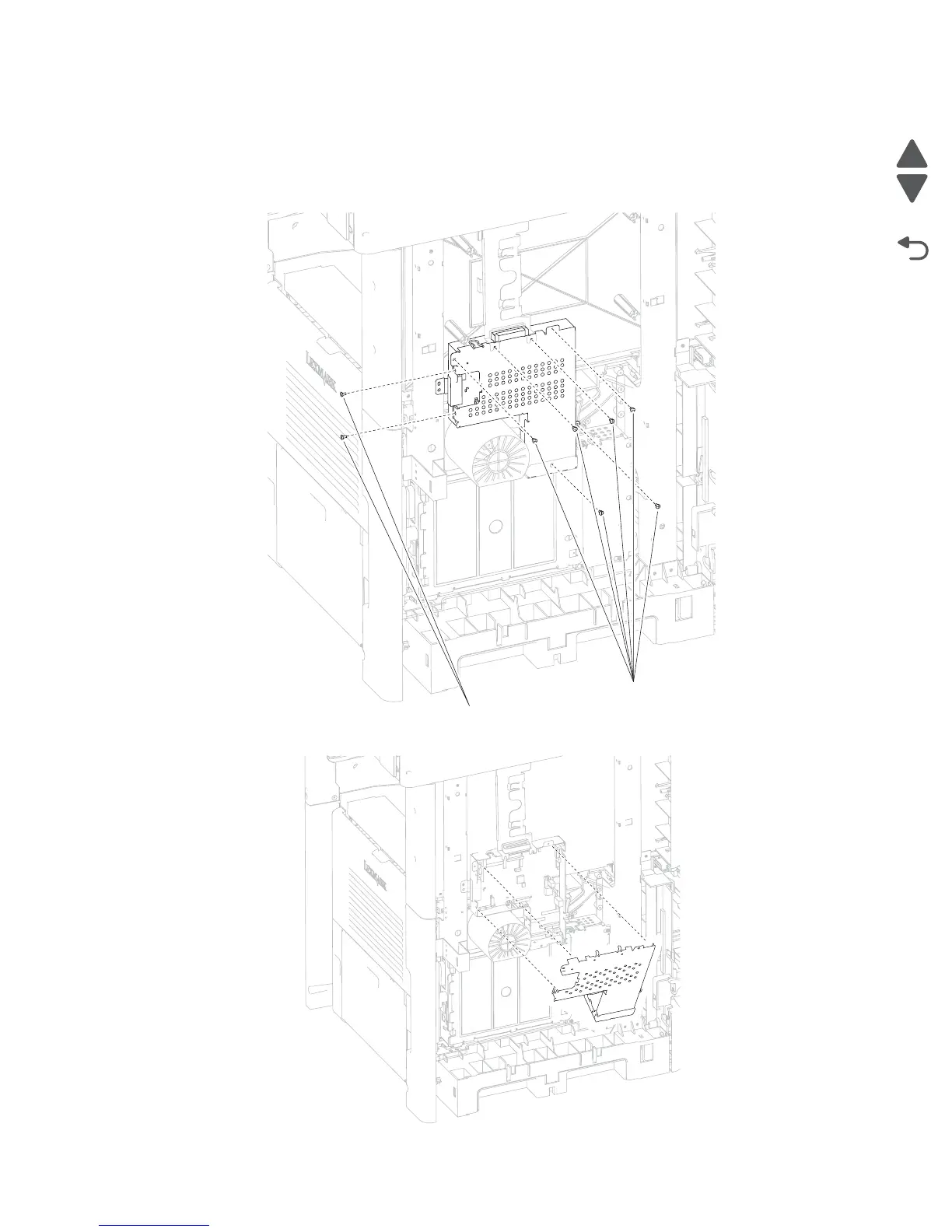

2. Remove eight screws (A) securing the scanner controller cage cover to the cage.

3. Remove the scanner controller card cage cover.
