4-128 Service Manual

7462

Go Back

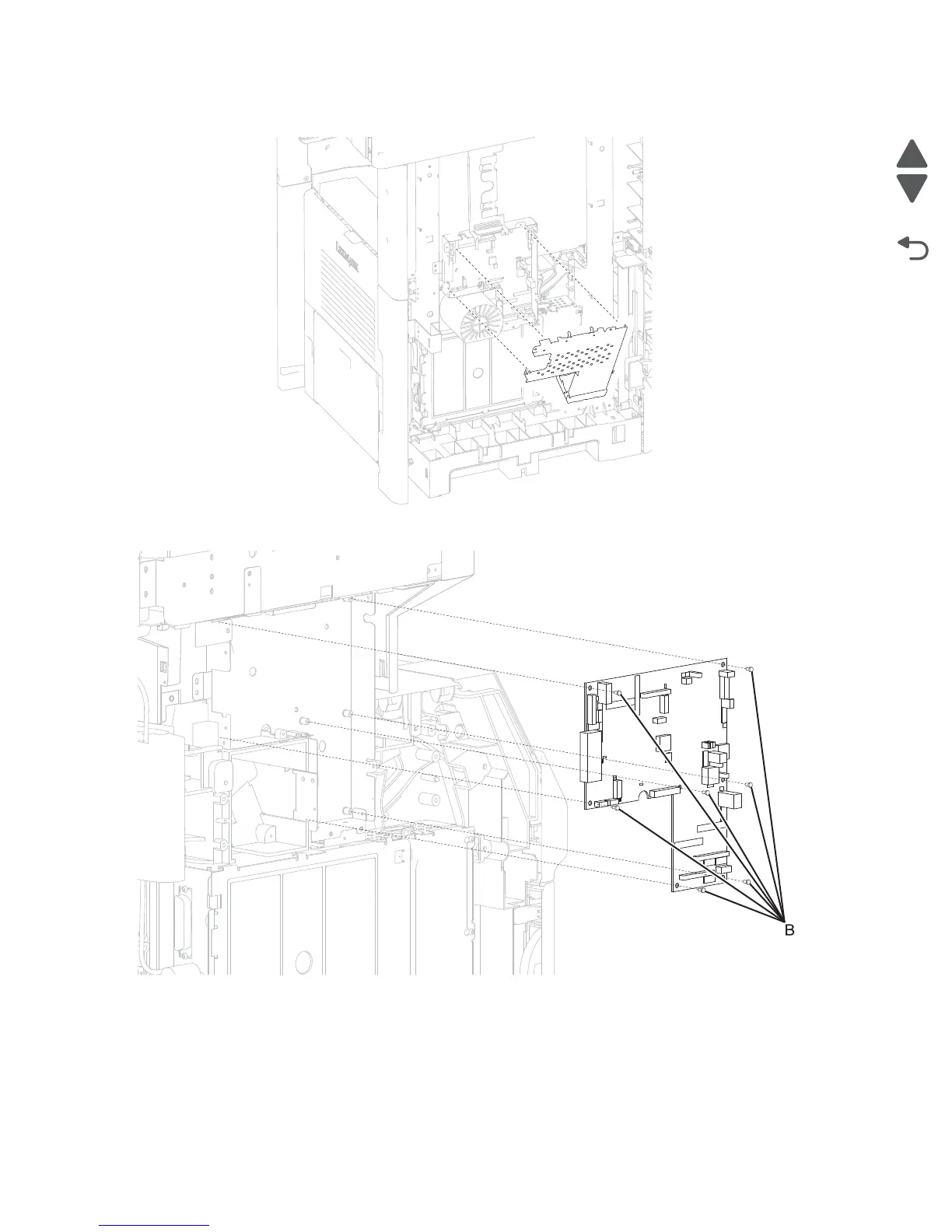

4. Remove the scanner controller card cage cover.

5. Disconnect all the harnesses and ribbon cables.

6. Remove the seven screws (B) securing the card to the cage.

7. Remove the scanner controller card.
