Repair information 4-127

7462

Go Back

Scanner controller card assembly removal (model X658)

1. Remove the scanner support cover, left. See “Scanner support cover, left removal (model X658)” on

page 4-148.

2. Remove the side cover, left. See “Side cover, left removal (model X658)” on page 4-120.

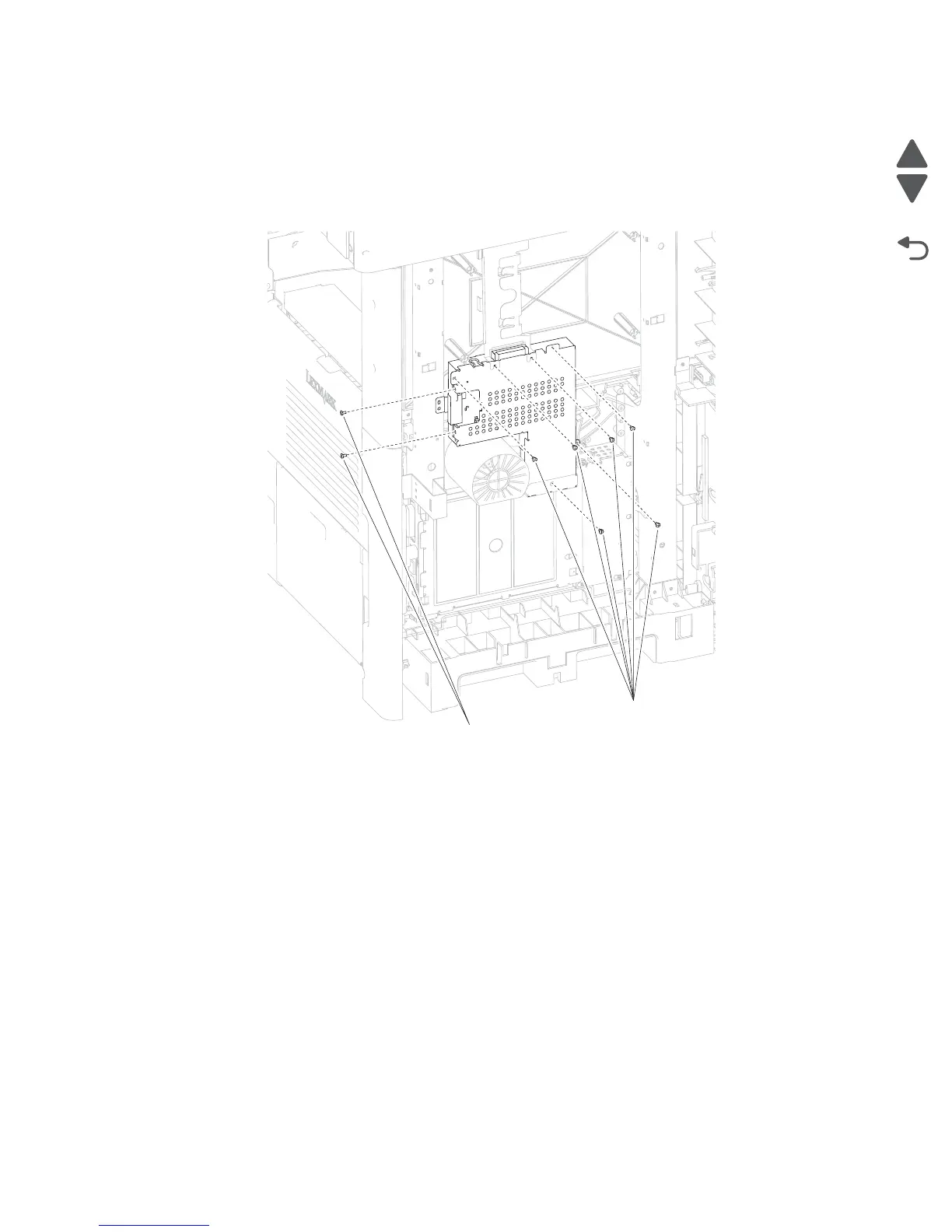

3. Remove eight screws (A) securing the scanner controller cage cover to the cage.
