Repair information 4-217

7462

Go Back

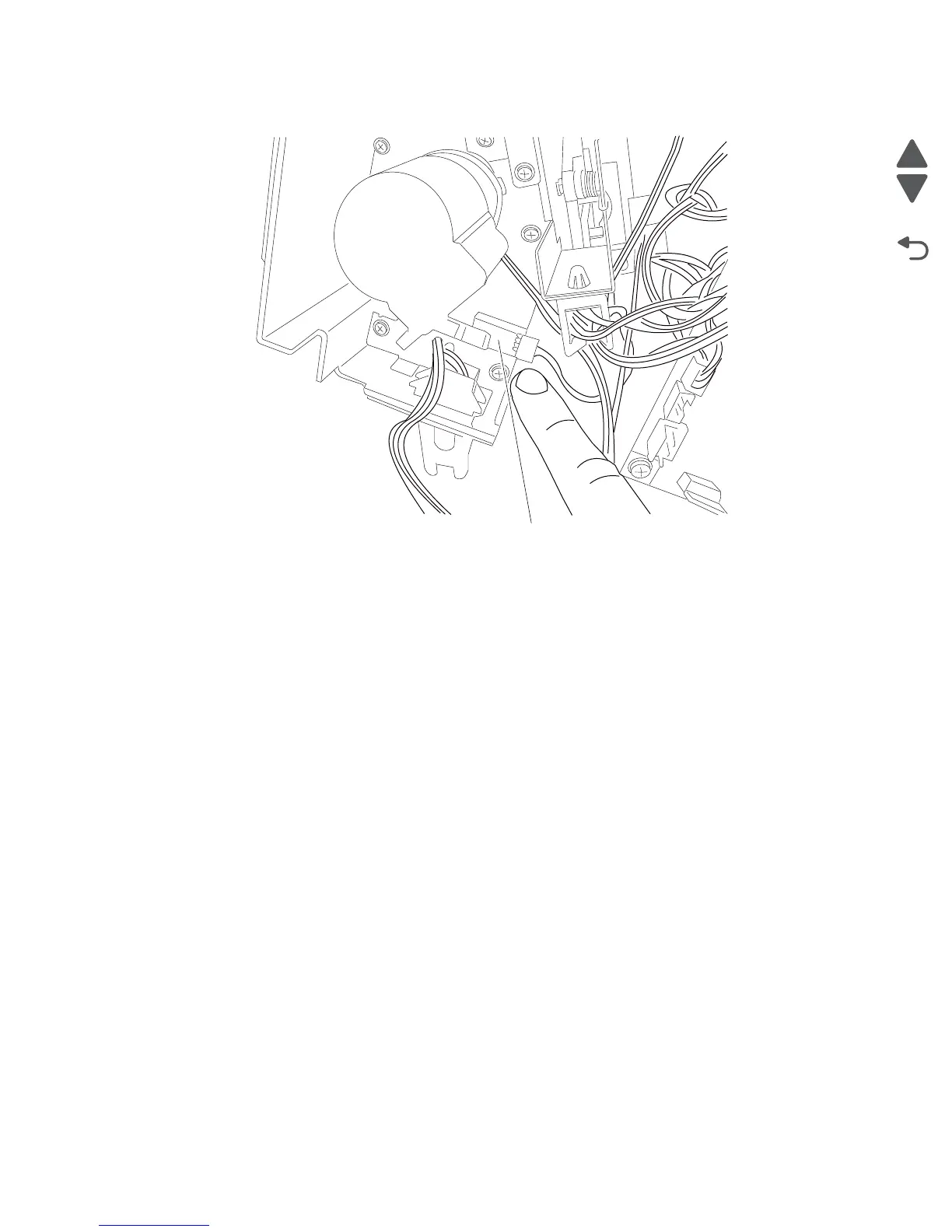

3. Release the tabs (A) securing the sensor to the unit.

Note: The tabs may be difficult to access. The use of a spring hook or flat-blade screwdriver may be

necessary to release the tabs.
