4-78 Service Manual

7462

Go Back

Sensor (ADF document set) removal

1. Remove the ADF document tray assembly. See “ADF document tray assembly removal” on

page 4-60.

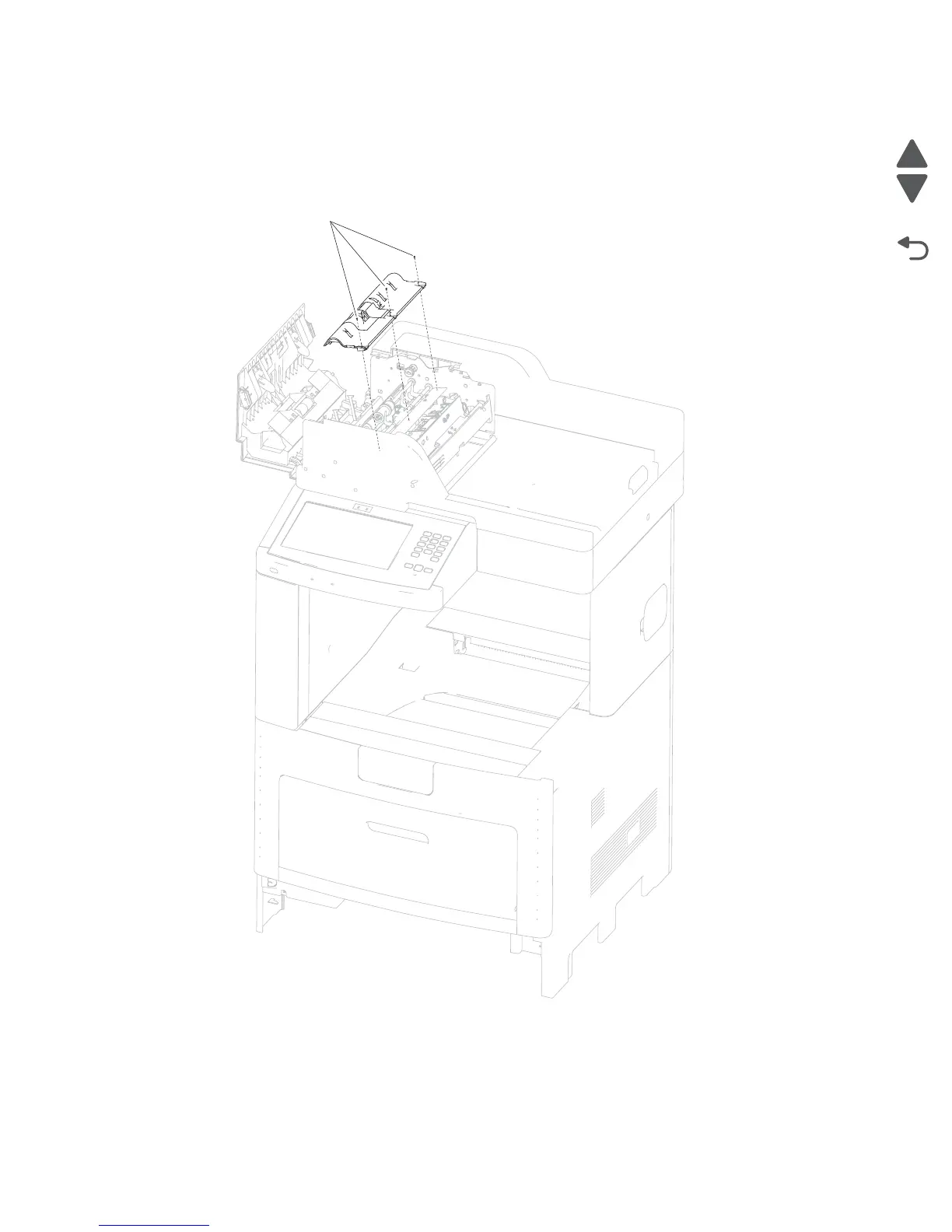

2. Remove the three screws (A) securing the separator guide to the ADF frame.

3. Remove the sensor (ADF document set) harness.

4. Remove the two screws (B) securing the sensor (ADF document set) bracket to the ADF frame.

5. Remove the sensor (ADF document set) and bracket.
