MFP stapler assembly tamper drive motor assembly removal
1. Remove the top cover. See “MFP stapler assembly top cover removal” on page 4-198.
2. Pull slack in the tamper drive belt and remove the belt from the tamper drive belt pulley.
3. Disconnect the tamper driver motor harness from the controller card.

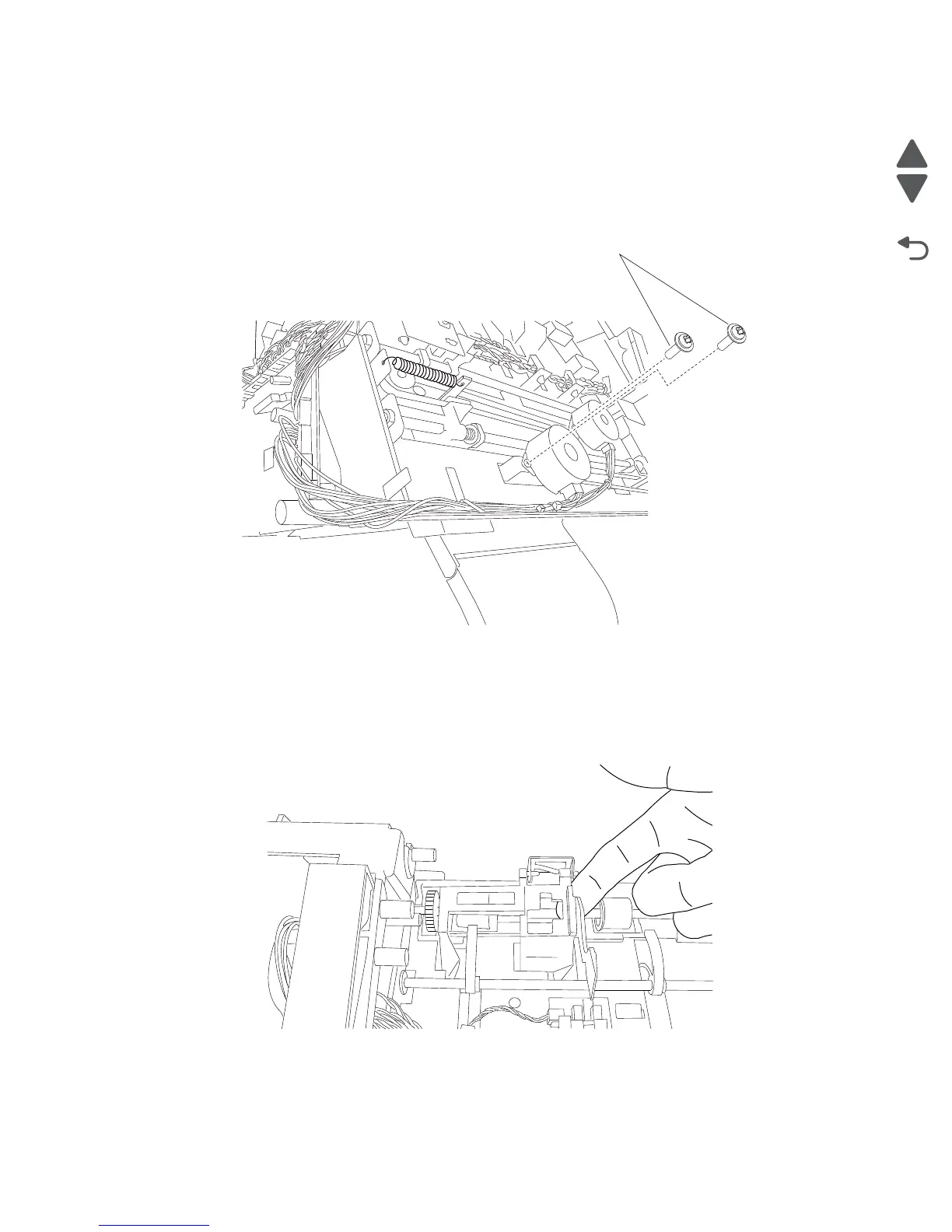

4. Remove the two screws (A) securing the tamper drive motor assembly to the tamper frame.
5. Remove the tamper drive motor assembly.
MFP stapler assembly media stack flap and media stack flap actuator removal
1. Remove the handle cover. See “MFP stapler assembly handle cover removal” on page 4-199.
2. Release the locking tab and slide the media stack flap actuator to the right and remove.
A
