4-174 Service Manual
7462
250-sheet pick arm bracket assembly removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
1. Disconnect the two 250-sheet pick arm bracket assembly cable connectors from the 250-sheet controller
card assembly.
2. Detach the pick arm spring from the drawer.

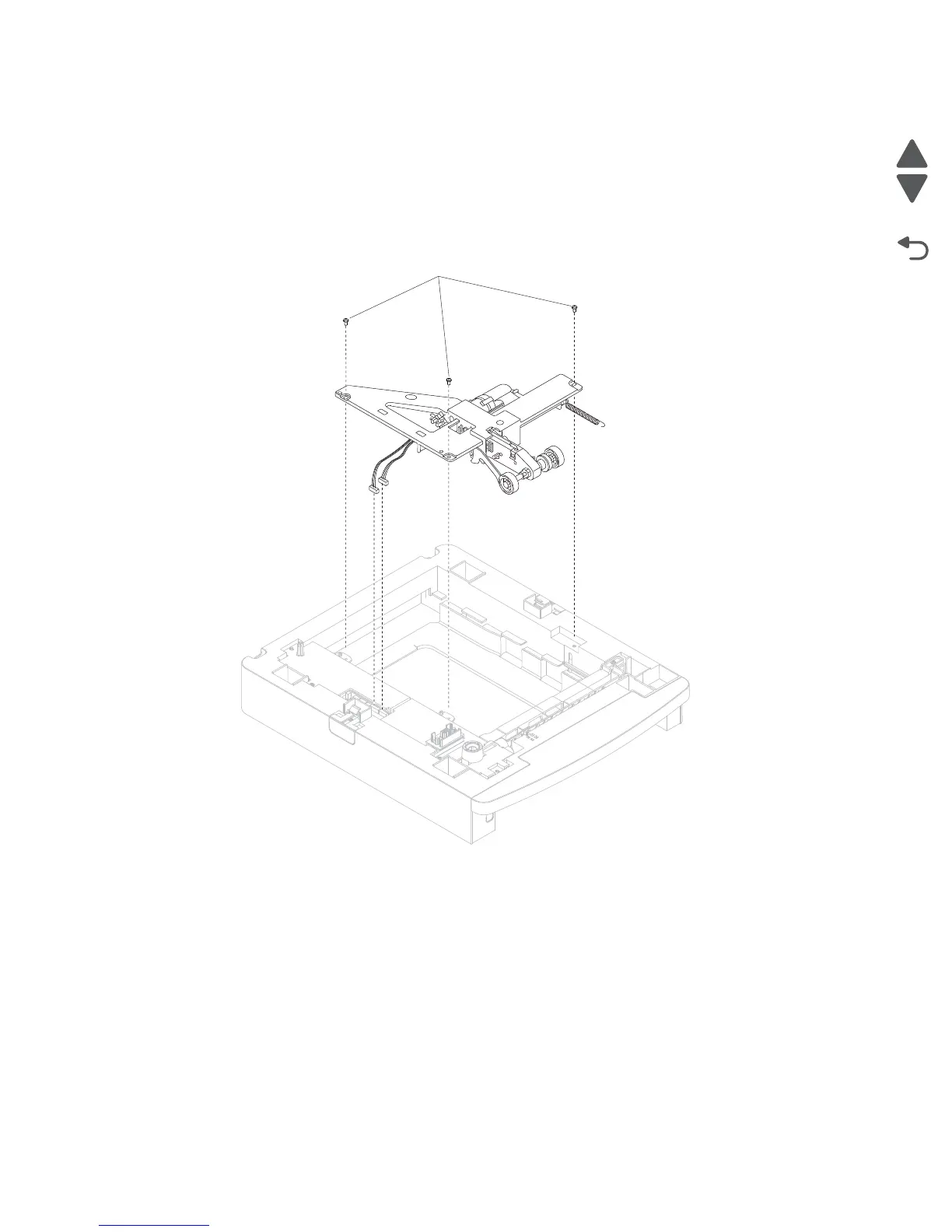

3. Remove the three screws (A) securing the 250-sheet pick arm bracket assembly to the drawer.
4. Remove the 250-sheet pick arm bracket assembly.
