Repair information 4-175
7462
250-sheet media out actuator removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal”
on page 4-174.

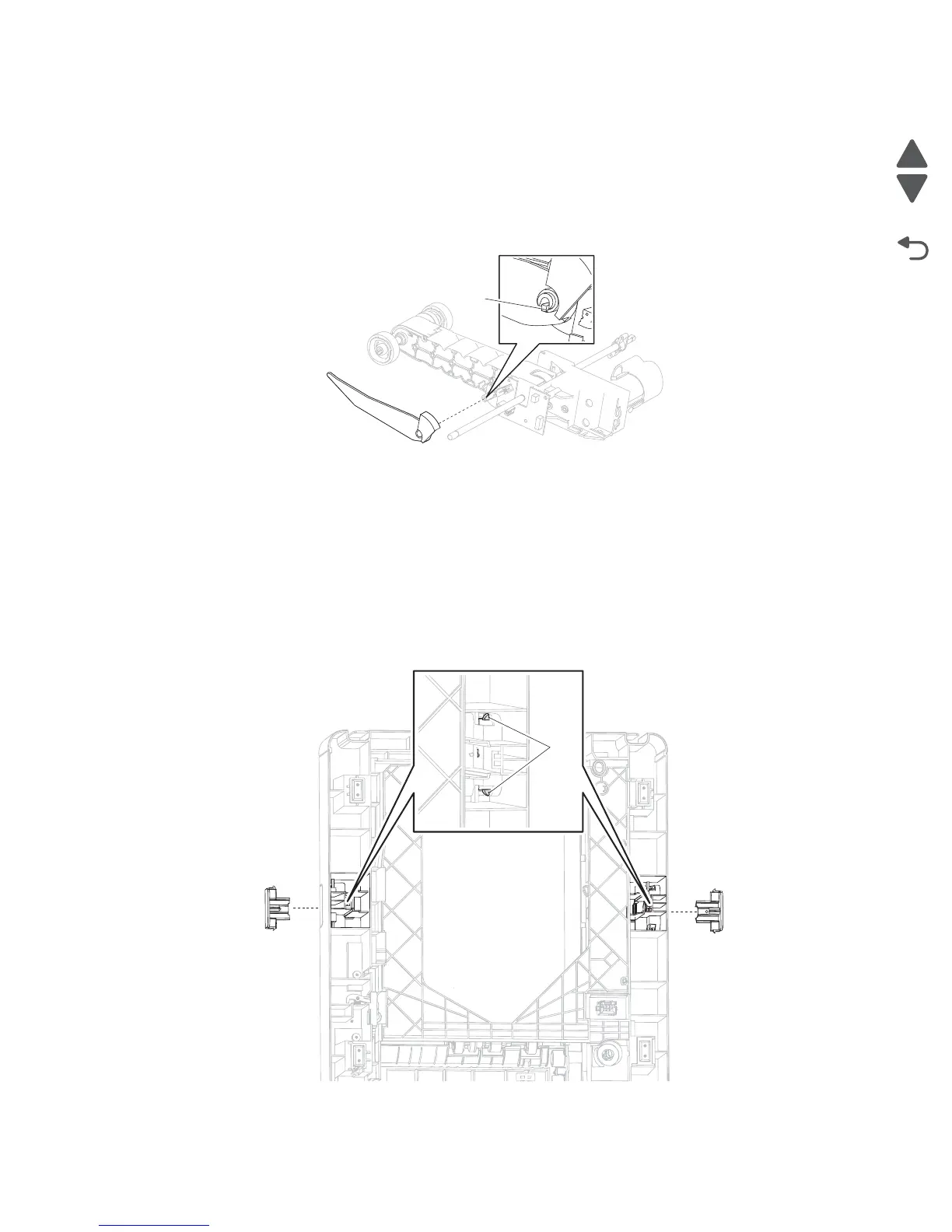

2. Release the hook (A) securing the 250-sheet media out actuator to the 250-sheet pick arm bracket
assembly.
3. Remove the 250-sheet media out actuator from the drawer.
Anti-tip latch assembly removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
The left and right anti-tip latch assemblies are the same, and only one is in a package. The instructions below
are for removing the left latch, but removing the right latch is similar.
1. Remove the 250-sheet tray assembly. See “250-sheet media tray assembly removal” on page 4-173.
2. Turn the drawer over so that you are looking at the bottom of the anti-tip latch assembly. Using a flathead
screwdriver, unsnap the two latches (A) securing the anti-tip latch assembly to the drawer.
3. Remove the anti-tip latch assembly.
