250-sheet frame assembly removal.
Note: The 250-sheet frame assembly is not a FRU.
1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal”
on page 4-174
2. Release the hooks securing the sensor (pass through) to the drawer.
3. Remove the sensor (pass through) from the drawer.

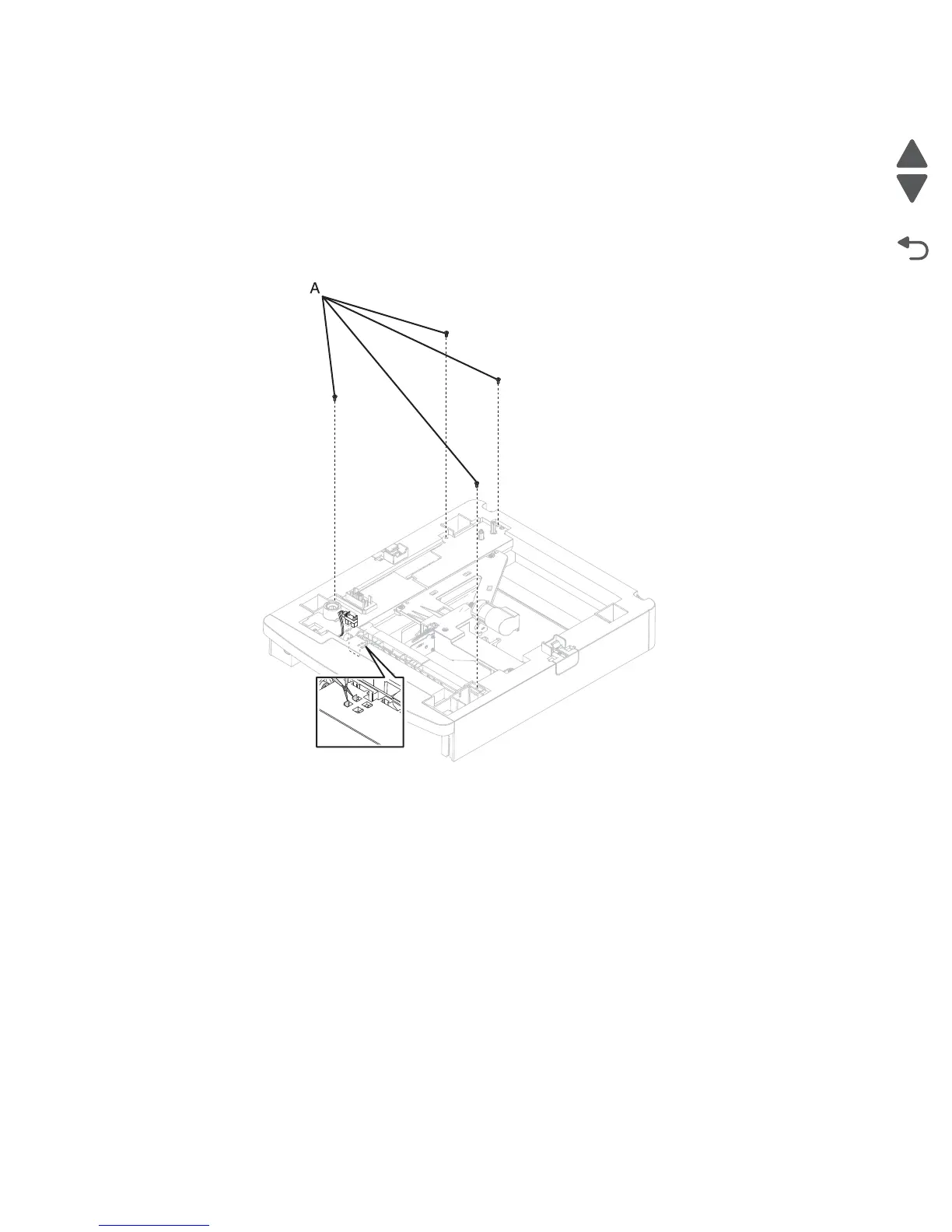

4. Remove the four screws (A) securing the 250-sheet frame assembly to the drawer.
5. Remove the 250-sheet frame assembly.
Sensor (pass through) with cable removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal”
on page 4-174
2. Release the hooks securing the sensor (pass through) to the drawer.
3. Remove the sensor (pass through) from the drawer.
