4-184 Service Manual

7462

Go Back

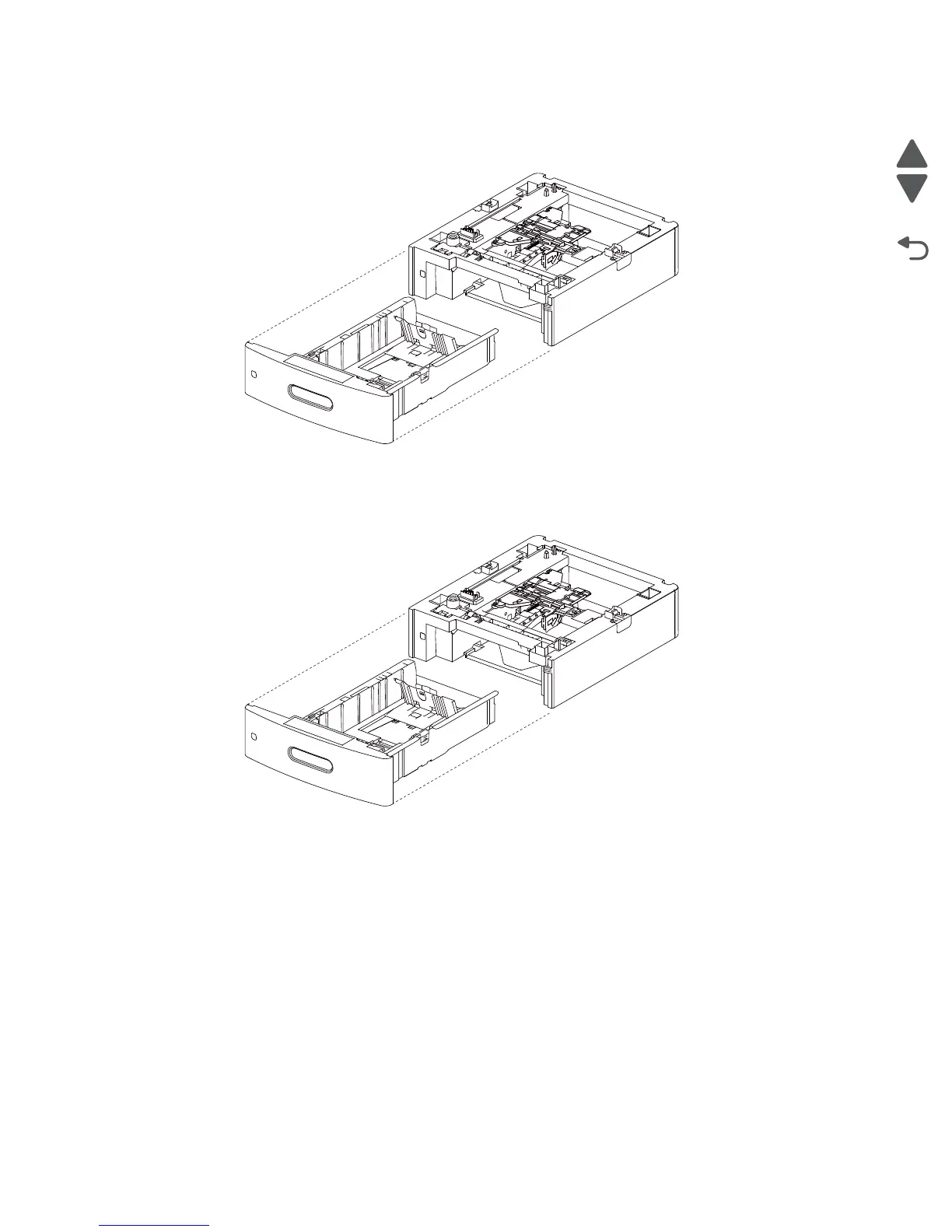

550-sheet media tray assembly removal

Remove the 550-sheet media tray assembly from the 550-sheet option drawer assembly.

550-sheet option drawer assembly removal

Remove the 550-sheet media tray assembly from the 550-sheet option drawer assembly.
