Lexmark T65 Series Service Manual

Repair information 4-185
7462
Go Back
Previous
Next

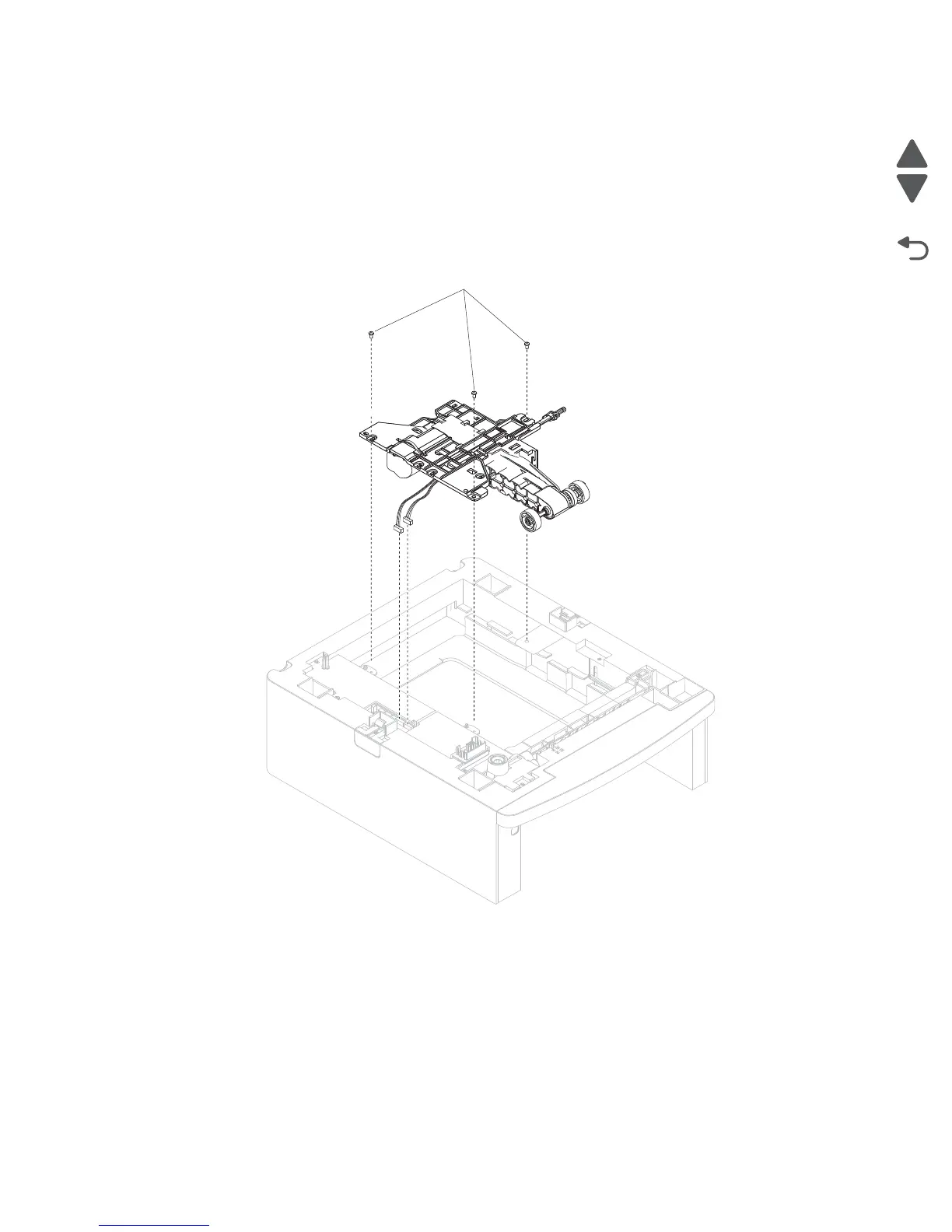

550-sheet pick arm bracket assembly removal
1. Remove the 550-sheet media tray assembly. See “550-sheet media tray assembly removal” on
page 4-184.
2. Remove the two 550-sheet pick arm bracket assembly cable connectors (A) from the 550-sheet controller
card assembly.
3. Detach the 550-sheet bellcrank recoil spring (B) from the drawer.
4. Remove the four screws (C) securing the 550-sheet pick arm bracket assembly to the drawer.
5. Remove the 550-sheet pick arm bracket assembly.
