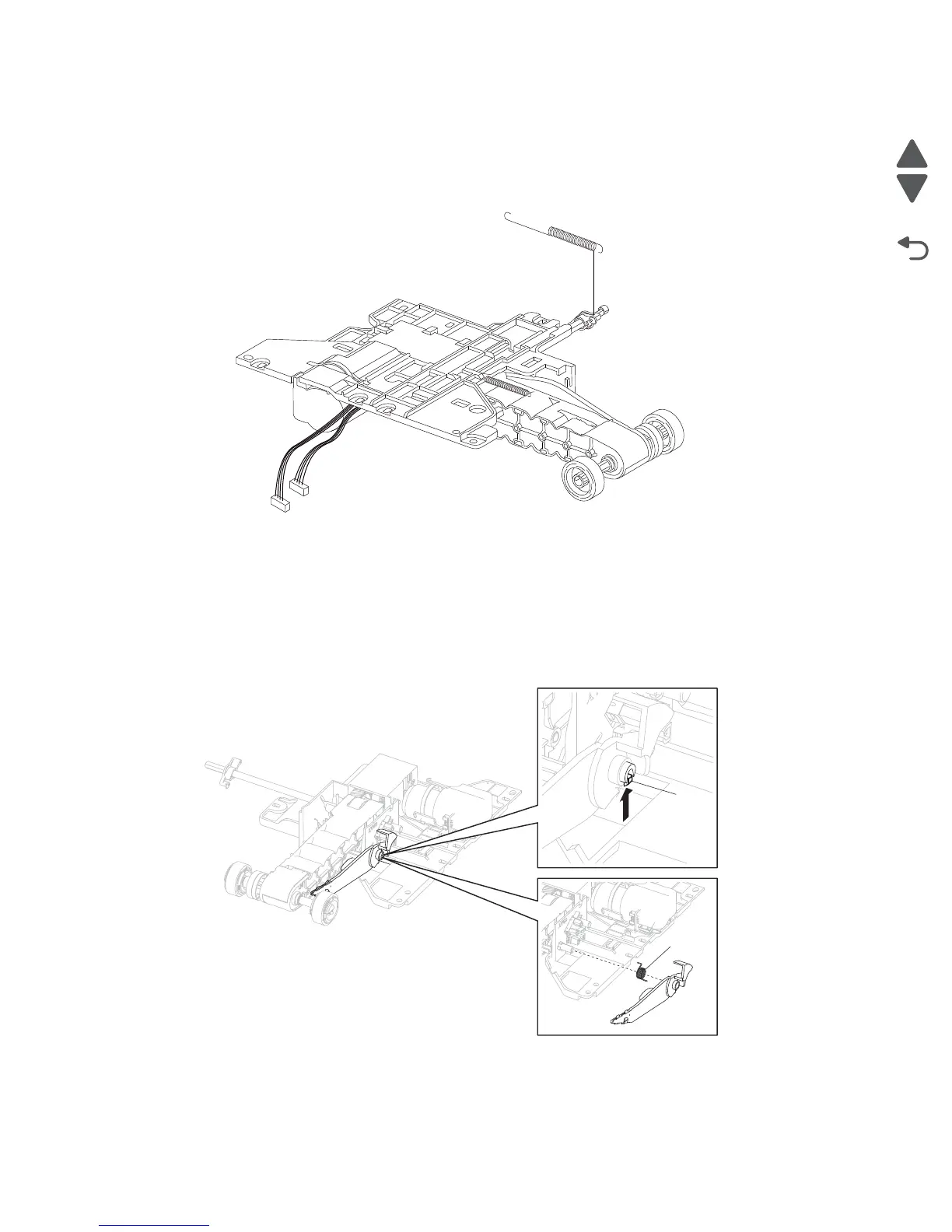

550-sheet bellcrank recoil spring removal
1. Remove the 550-sheet pick arm bracket assembly. See “550-sheet pick arm bracket assembly removal”
on page 4-185.
2. Remove the 550-sheet bellcrank recoil spring from the 550-sheet pick arm bracket assembly.
Media out actuator removal (models T652 and T654)
1. Remove the 550-sheet pick arm bracket assembly. See “550-sheet pick arm bracket assembly removal”
on page 4-185.
2. Release the hook (A) securing the media out actuator with spring to the 550-sheet pick arm bracket
assembly.
3. Detach the spring (B) from the media out actuator.
A
B
